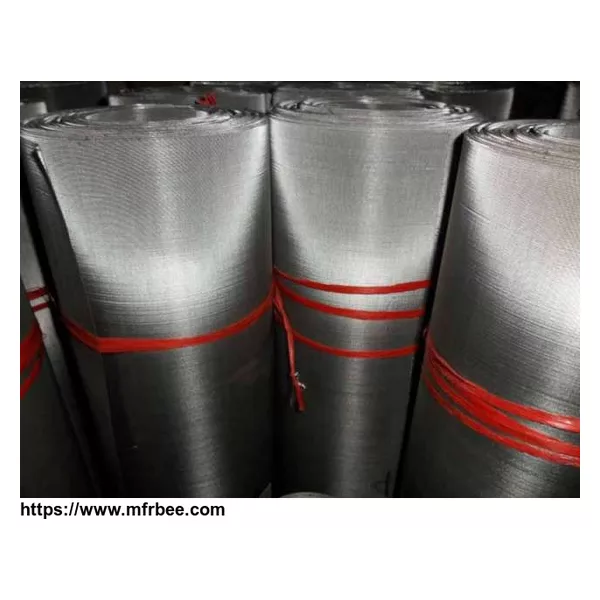

BOLI Provide High Quality Dutch Woven Wire Cloth.
Woven Type: Dutch Weave
Material: SS201 304 316 316L
Mesh sizes:
Ultra thin wire cloth for printing: 40mesh-500mesh
Fine mesh cloth: 80mesh-635 mesh
Micronic Filter Cloth: 12x64mesh-500x3200mesh (1-200micron)
Roll sizes:
Roll Width: 0.914 1.0 1.22 1.524 2.0 2.5 3.0 4.0 5.0 until 8.0m
Roll Length:15m,30m,can be customized
Features: Acid resisting, alkali resisting, heat resisting, durable in use.
Applications: Printing, Filtering, Sieving, Screening, Sifting
SS Plain Dutch Weave Screen Specifications
Mesh count per inch | Wire diameter inches | Absolute filter rating microns | Nominal filter rating microns |
8×85 | 014×.0126 | 318-340 | 250-255 |
12×64 | .024×.0165 | 270-285 | 200-205 |
14×88 | .020×.013 | 225-245 | 150-155 |
20×150 | .0098×.007 | 155-165 | 100-105 |
24×100 | .015×.010 | 115-125 | 80-85 |
30×150 | .009×.007 | 95-100 | 65-70 |
40×200 | .007×.0055 | 65-70 | 55-60 |
50×250 | .0055×.0045 | 55-60 | 40-45 |
80×400 | .0049×.0028 | 43-48 | 35-40 |
SS Twill Dutch Weave Screen Specifications
| | | |
Mesh count per inch | Wire diameter inches | Absolute filter rating microns | Nominal filter rating microns |
20×250 | .0098×.0079 | 110-120 | 98-105 |
30×360 | .0098×.0060 | 90-100 | 80-84 |
40×560 | .0070×.0040 | 70-75 | 47-52 |
80×700 | .0040×.0030 | 35-40 | 24-26 |
200×600 | .0024×.0018 | 28-32 | 19-21 |
165×800 | .0028×.0020 | 24-26 | 14-16 |
165×1400 | .0028×.0016 | 16-18 | 9-11 |
200×1400 | .0028×.0016 | 12-14 | 5-6 |
250×1400 | .0022×.0016 | 11-12 | 3-4 |
325×2300 | .0015×.0010 | 8-9 | 2-3 |
400x2800 | .0011x.0008 | 5-6 |
