Foam Wipe Ball WP10004

Place Of Origin
Merit
Minimum Order
1
Packaging
1
Delivery
3 Days

Foam wipe ball WP10004 is designed to wipe drill-pipe or tubing string clean of cement, fluids, or debris, and can be used to separate fluids in oilfield services. Our product is award-winning of best generic useful tool to handle offshore and onshore after cementing wipe out job. We have very few customer thanksgiving letters on this item which says we saved him from big costs.

These newly developed wiper balls are made of natural rubber and can be used in a temperature range of 40°F (4°C) to 302°F (150°C). The ball has a parting stretch of 380 to 440%, which means it can pass through small restrictions without being damaged.

Merit’s wipers are demanding from petroleum producers countries since 2005. We have a big line form USA, KSA, China, Canada, Iraq, Iran, UAE, Brazil, Kuwait, Mexico, Venezuela, Norway, Qatar, Kazakhstan, UK, Oman, Indonesia, Colombia, Azerbaijan, Malaysia, Argentina, Ecuador, Thailand, Australia, Vietnam, Turkmenistan, Germany, Italy, Denmark, France, Japan, Brunei, South Korea, Trinidad and Tobago, Romania, Pakistan; Bolivia, Hong Kong, Ireland, Georgia, Mauritius, Kyrgzstan, Costa Rica, Uruguay, Paraguay, Sweden, and others.

Merit’s foam wipe ball WP10004 can be loaded into drill pipe or tubing connections.
It easily passes through internal upset restrictions such as mechanical setting tools, diverters, and liner running tools and multiple balls can be pumped if necessary.

We are the main procurer for oilfields

Foam wiper balls have been used with all types of drilling and displacement fluids. Our products are durable against all oil and gas chemicals.

In addition to underline that our wiper foam balls the best match one and only item with oil & gas industry specific cementing

* You prefer only OEM Merit parts.

We produce TN™ formulation foam wiper ball for following application also. Please don’t forget that we can manufacture special formulation wiper foam balls for your needs.

Pipe Body Specification
Pipe Body OD (in) 5.5
Pipe Body Wall Thickness-Nominal Weight 0.415 in- 24.7lb/ft
Pipe Body Grade S-135
Drill Pipe Lenght Range 2
Max (ft) 32.0
Min (ft) 30.0
Type of Upset IEU
Maximum Upset OD (in) 5.688
Joint Tool Specification
Connection Type and Size XT™54
Benchmark GPmark™
SmoothEdge™ Height per side (in) N/A
Tool Joint SMYS (psi) 120,000
Connection OD (in) 6.625
Connection ID (in) 4.0
Pin Tong Length (in) 10.10
Box Tong Length (in) 15.0
Thread Compound Friction Factor 1.0
Drill Pipe Foam Wiper Ball WP10006: general size reference 6.00 in. Actual size 5.91 in. Thus its typical wiping range 4.75 to 2.00 in. In addition minimum restriction of it is 0.875 in.
WP10007
WP10008: general size reference 8.00 in. Actual size 7.87 in. Thus its typical wiping range 7.00 to 3.00 in. Additionally its minimum restriction of it is 1.375 in.

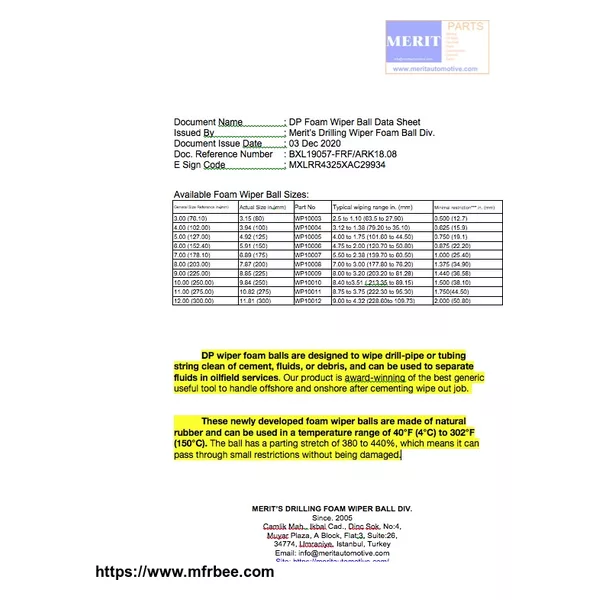

General Size Reference in.(mm) Actual Size in.(mm) Part No Typical wiping range in. (mm) Minimal restriction*** in. (mm)
3.00 (76.10) 3.15 (80) WP10003 2.5 to 1.10 (63.5 to 27.90) 0.500 (12.7)
4.00 (102.00) 3.94 (100) WP10004 3.12 to 1.38 (79.20 to 35.10) 0.625 (15.9)
5.00 (127.00) 4.92 (125) WP10005 4.00 to 1.75 (101.60 to 44.50) 0.750 (19.1)
6.00 (152.40) 5.91 (150) WP10006 4.75 to 2.00 (120.70 to 50.80) 0.875 (22.20)
7.00 (178.10) 6.89 (175) WP10007 5.50 to 2.38 (139.70 to 60.50) 1.000 (25.40)
8.00 (203.00) 7.87 (200) WP10008 7.00 to 3.00 (177.80 to 76.20) 1.375 (34.90)
9.00 (225.00) 8.85 (225) WP10009 8.00 to 3.20 (203.20 to 81.28) 1.440 (36.58)
10.00 (250.00) 9.84 (250) WP10010 8.40 to3.51 ( 213.35 to 89.15) 1.500 (38.10)
11.00 (275.00) 10.82 (275) WP10011 8.75 to 3.75 (222.30 to 95.30) 1.750(44.50)
12.00 (300.00) 11.81 (300) WP10012 9.00 to 4.32 (228.60to 109.73) 2.000 (50.80)

* Please contact for custom sizes.

WP-10003>>3” Completion Services Wiper Ball.
WP-10004>>4” Completion Services Wiper Ball.

Meritautomotive is only and unique maker of the fine WP10004 downhole tools 4″ Wiper Ball.

Our products are using in Africa’s n oilfields of Nigeria, Angola, Algeria, Libya, Egypt, Republic Of Congo, Gabon,Equatorial Guinea, South Sudan, Chad for more than 16 years.
