Analog Devices(ADI)AD623ARZ Electronic Components ICs Low Cost Instrumentation Amplifier

Quick Details：

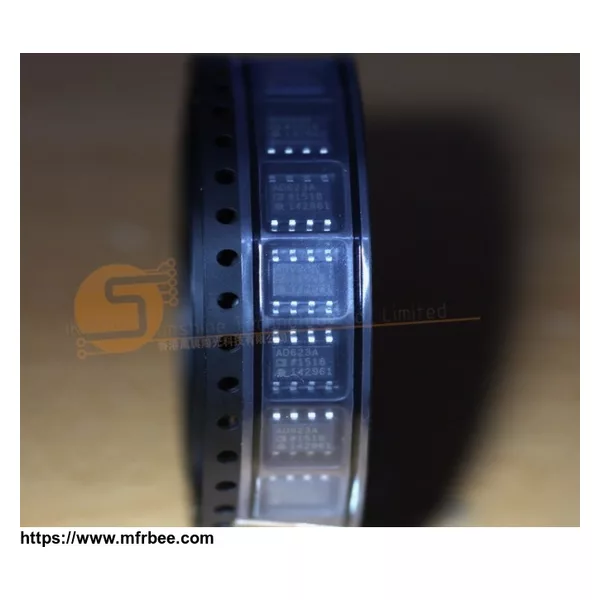

Pictures:

Features and Benefits:

1. Easy to use
2. Rail-to-rail output swing
3. Input voltage range extends 150 mV below ground (single supply)
4. Low power, 550 μA maximum quiescent current
5. Gain set with one external resistor
6. Gain range: 1 to 1000
7. 14-terminal, 6 mm 5.6 mm 2.2 mm, LCC package
8. High accuracy DC performance
9. 0.10% gain error (G =1)
10. 0.35% gain error (G > 1)
11. Noise: 35 nV/√Hz RTI noise at 1 kHz
12. Optimal dynamic specifications
13. 800 kHz bandwidth (G =1)
14. 20 μs settling time to 0.01% (G =10)

Products details:

the AD623 is an integrated, single- or dual-supply instrumentation amplifier that delivers rail-to-rail output swing using supply voltages from 2.7 V to 12 V. the AD623 offers user flexibility by allowing single gain set resistor programming and by conforming to the 8-lead industry standard pinout configuration. with no external resistor, the AD623 is configured for unity gain (G =1), and with an external resistor, the AD623 can be programmed for gains of up to 1000.

the accuracy of the AD623 is the result of increasing ac common-mode rejection ratio (CMRR) coincident with increasing gain. Line noise harmonics are rejected due to constant CMRR up to 200 Hz. the AD623 has a wide input common-mode range and amplifies signals with common-mode voltages as low as 150 mV below ground. the AD623 maintains optimal performance with dual and single polarity power supplies.

Application:

1. Low power medical instrumentation
2. Transducer interfaces
3. Thermocouple amplifiers
4. Industrial process controls
5. Difference amplifiers
6. Low power data acquisition
