ITEM | UNIT | TYPICAL VALUE | TESTING STANDARD | |
Thickness | mic(Guage) | 10~12(40~48) | 10~12(40~48) | ASTM D374 |
Aluminum adhesion
( EAA Testing) |
N/15mm | 2.0~3.0 | 1.5~2.5 | Internal Method |
Thickness of the aluminumed layer |
OD | 2.4~2.6 | 2.8~3.2 | Internal Method |
Å | 480~520 | 560~640 | Internal Method | |
Ω/□ | 1.0~1.2 | 0.7-0.9 | Internal Method | |
WVTR | g/(m²*24h),90%,38℃ | 0.7 | 0.7 | ASTM F1249 |
OTR | cm³/(m²*24h*0.1Mpa),23℃ | 0.8 | 0.8 | ASTM D3985 |
We are professional at manufacturing complete film extrusion line with over 25 years\' rich experience, highly improving the production efficiency and extrusion technology. We also have exported many high-quality film production lines to different countries and provided ...
想知道更多细节,请联系我WhatsApp或微信+8615906222016。 ...

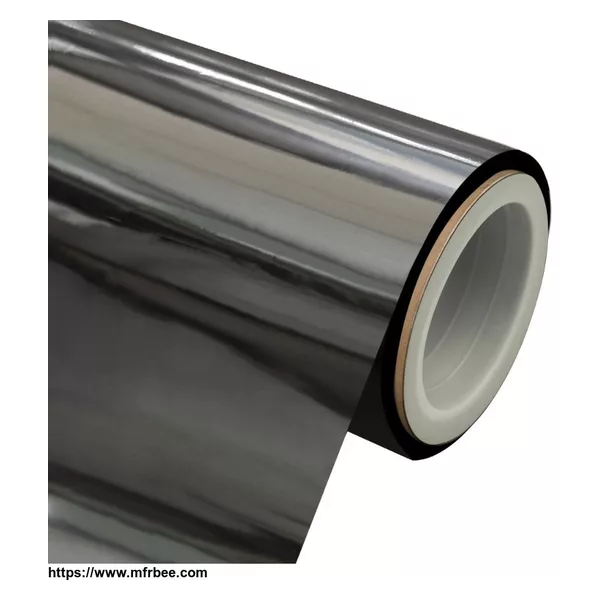

1.The film is wound around a strong core with the metallized layer facing inward. After the film has been wrapped, there will put a paster on the margin. The specified external disk diameter can be achieved.In addition, the coils are separated by plastic foam to protect the ...
1.Basic Information (1)MPP Film Type: Metallized Polypropylene Film For Capacitors (2)Width:4.5-130mm (3)Thickness:1.6-12um (4)Margin Value:0.5mm 1.0mm 1.5mm 2.0mm 2.5mm (5)Specification:Metallized Film For Capacitors (6)Types Of Metallized Layer:Al Metallized Film、Zn/Al ...
Technical specifications Model MPP(Metallized Polypropylene Film) Material BOPP Hardness Soft Transparency Opaque Processing Type Multiple Extrusion Thickness 2.0-12μm Width 4.5-130mm Density 0.905±0.005 g/cm3 MOQ 1 kilogram Margin Value 0.4mm 1mm 1.5mm 2mm 2.5mm Production ...
Technical specifications Model MPP(Metallized Polypropylene Film) Material OPP Hardness Soft Transparency Opaque Processing Type Multiple Extrusion Thickness 2.0-12μm Width 4.5-130mm Density 0.905±0.005 g/cm3 MOQ 1 kilogram Margin Value 0.4mm 1mm 1.5mm 2mm 2.5mm Production ...
Technical specifications Model MPP(Metallized Polypropylene Film) Material PET Hardness Soft Transparency Opaque Processing Type Multiple Extrusion Thickness 2.0-12μm Width 4.5-130mm Density 0.905±0.005 g/cm3 MOQ 1 kilogram Margin Value 0.4mm 1mm 1.5mm 2mm 2.5mm Production ...
Technical specifications Model MPP(Metallized Polypropylene Film) Material OPP Hardness Soft Transparency Opaque Processing Type Multiple Extrusion Thickness 2.0-12μm Width 4.5-130mm Density 0.905±0.005 g/cm3 MOQ 1 kilogram Margin Value 0.4mm 1mm 1.5mm 2mm 2.5mm Production ...
Technical specifications Model MPP(Metallized Polypropylene Film) Material BOPP Hardness Soft Transparency Opaque Processing Type Multiple Extrusion Thickness 2.0-12μm Width 4.5-130mm Density 0.905±0.005 g/cm3 MOQ 1 kilogram Margin Value 0.4mm 1mm 1.5mm 2mm 2.5mm Production ...
