UV power puck LS131

FOB Price
USD $412.00 / Piece
Place Of Origin
China(Mainland)
Minimum Order
1
Packaging
1 pc each box
Delivery
10 Days

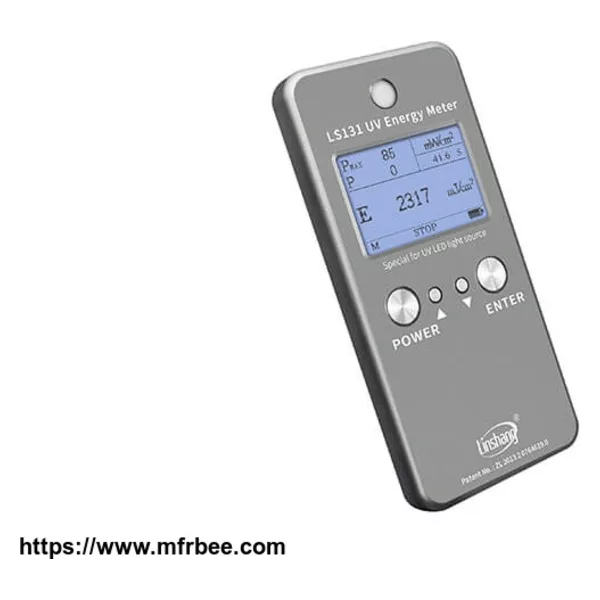

LS131 UV energy meter is a professional instrument for UV LED light source detection. The UV energy meter can detect the power and energy value of UV light source.

Spectral range 340nm-420nm, calibrated at 395nm
Irradiance measuring range 0-40000mW/cm²
Irradiance resolution 1mW/cm²
Energy measuring range 0-999999mJ/cm²
Energy measuring accuracy ±10%,±5% (typical)
Sampling speed 2000 times/second
Irradiance data storage interval 32 times/second
Recording period 32 minutes
Power supply 4 AAA alkaline dry batteries
Display 240*160 Dot matrix LCD
Dimension 160mm × 75mm × 13mm (L*W*H)
Weight 303 g
