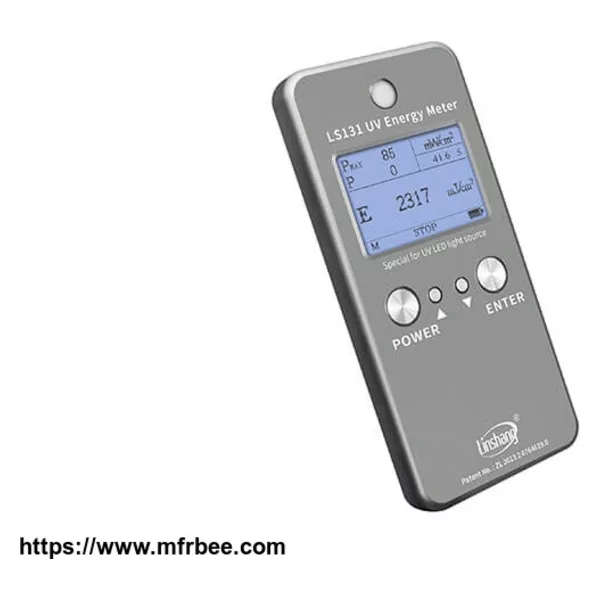

UV power puck Linshang LS131

FOB Price: USD $412.00 / Piece
Place Of Origin: China(Mainland)

Minimum Order: 1

Packaging: 1 pc each box

Delivery: 4 Days

1. It can detect the intensity and energy of UV UV LED light source at the same time. It has rich statistical functions and can display the real-time power value, maximum power value, energy value and measurement time at the same time.

2．The LS131 UV energy meter has a power curve diagram, which can analyze the light intensity distribution of the UV light source through the power curve diagram.

3．High temperature resistant design, can run in the environment of 100 degrees Celsius for a long time. We also provide high temperature resistant protective cover for customers to choose (high temperature cover is not included as standard). The method of using high temperature cover is shown in the figure below. For the detailed process and conclusion of the high temperature resistance experiment of the Linshang UV energy meter, you can click the article below to see the details "Use Time of Linshang UV Energy Meter at Different High Temperature"

4．The front detector design facilitates data reading during the test.

5．High-speed acquisition of 2048 times / second makes the test data more accurate. With the provided PC software, each test data can be exported to EXCEL form after connecting to the computer, and a test report can be generated. The test report can be printed as a PDF file for archiving.

6．Wide spectral response, can measure UV LED light sources of various wavelengths such as 365nm, 375nm, 385nm, 395nm, 405nm.

7．Built-in timer can accurately record the length of UV curing time. The instrument has a built-in large-capacity memory, which can record up to 60,000 pieces of power data.

8．The stored data will not be lost when the power is turned off, and the last test data will be displayed automatically when the power is turned on. You need to manually delete the test data.
