Flat Side Oval Tube Roll Forming Machine

FOB Price
USD $9,000.00 / Piece
Place Of Origin
China
Minimum Order
1
Packaging
Container
Delivery
55 Days

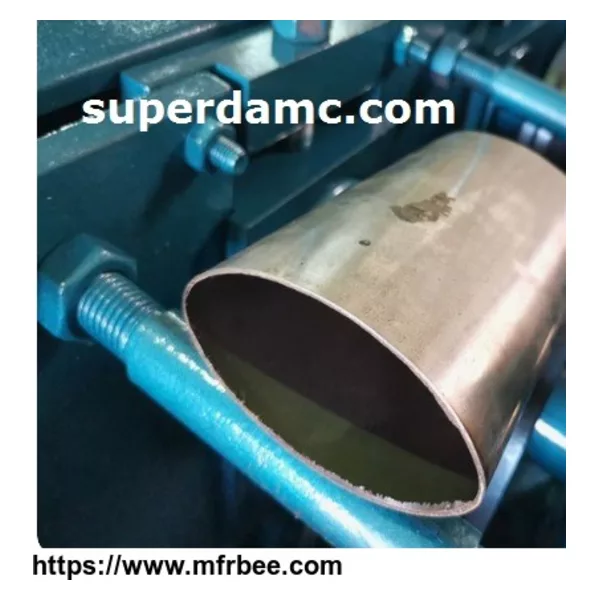

Steel elliptical shaped tube is generally extruded into a duck egg shape on the basis of a circular tube,we call it oval shape tube as well. The oval tube is divided into a regular ellipse and a flat ellipse. A regular ellipse refers to a duck egg shape with a symmetrical arc, and a flat ellipse refers to the shape of two long faces parallel and straight , The two short sides are arc-shaped. Mainly used in industrial pipelines and mechanical structural parts such as petroleum, chemical industry, medical treatment, food, light industry, mechanical instrumentation, etc. In addition, when the bending and torsion strength are the same, the weight is lighter, so it is also used to manufacture mechanical parts and engineering structures.




Model SP-48
Motor power 5.5KW
Reducer 350 type
Feed material iron pipe
Feeding round tube diameter 1.5 inch (cun)
Forming Roller 8 forming + 2 straightening
Working speed 10 meters / minute
Roller material GCr15 heat treatment after finishing
Spindle material 40Cr after quenching and tempering
Transmission mode 1 inch chain sprocket drive

https://www.superdamc.com


  • Country: China (Mainland)
  • Business Type: Rack roll forming machine, Highway guard rail roll forming machine, floor deck roll forming machine, box beam forming machine, cable tray machine, door industry machine, electronic cabinet roll forming machine
  • Market:Asia,European Union
  • Founded Year:2009
  • Address:No.95, Ainan Rd, Longdong district, Longgang area
  • Contact:Demi Wu
