Product sourcing details

FOB Price: USD $442.00 / Piece
Place of Origin: China(Mainland)

Packaging: 1 pc each box

Supplier: linshangtech

Purchasing information

Minimum order: 1
Lead time: 15 Days

Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.

1. The UV measurement device probe adopts ultra-small size design, which can measure the narrowest width of 7.2 mm.

2. High-speed acquisition, 2048 samples per second, the UV radiometer can accurately calculate UV energy.

3. Data statistics function, the maximum value, minimum value, average value, and measurement time will be displayed on the interface.

4. It is suitable for the detection of the intensity and energy value of LED light sources in narrow space of 365nm, 375nm, 385nm, 395nm, 405nm and other bands.

5. Long press the power button in the off state to enter into the following parameter setting interfaces. Customers can set parameters according to their needs.

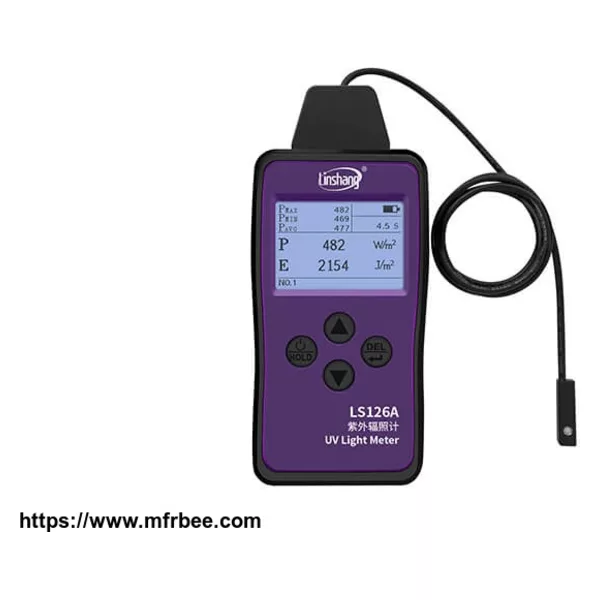

LS126A UV Light Meter Parameters

Parameters	LS126A UV Light Meter
Spectral response	340nm-420nm, calibrated with 395nm UV LED light source
Power measuring range	0 - 20000 mW/cm²
Resolution	1 mW/cm²
Energy measuring range	0-9999999mJ/cm2
Record time	0-99999s
Accuracy	±10 %
Sampling speed	2048times/second
Optional unit	mW/cm²(default), W/cm², W/m²
Test hole diameter	￠=3mm
Probe dimension	28mm ×7.2mm ×6.5mm(LWH)
Host dimension	170mm ×76mm×26mm (LWH)
Probe wire length	0.8m
Weight	About 232 (with battery)
Display	240*160 dot matrix LCD
Battery	4 AAA alkaline dry batteries
