Handrail forming machine technology (Steel tube thickness less than 3.5mm)
Model | T-75 |
Motor power | 7.5KW |
Reducer | 350 type |
Feed material | iron pipe |
Feeding round tube diameter |
1.5 inch (cun) |
Forming Roller | 8 forming + 2 straightening |
Working speed | 10 meters / minute |
Roller material | GCr15 heat treatment after finishing |
Spindle material | 40Cr after quenching and tempering |
Transmission mode | 1.2 inch chain sprocket drive |

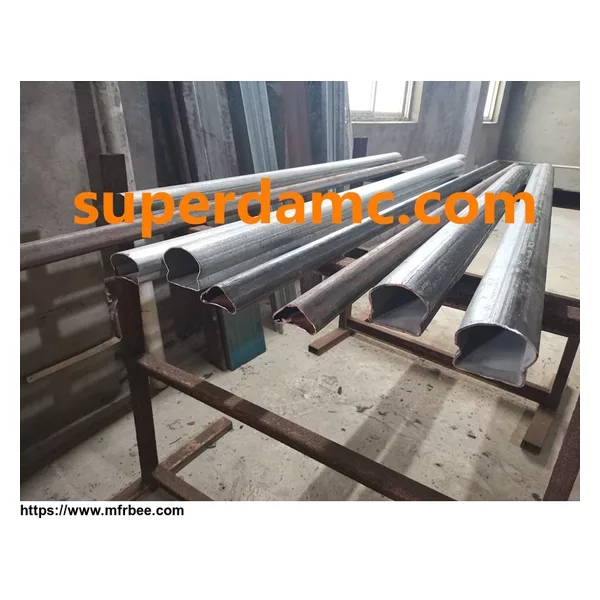

Handrails are usually practical and decorative protrusions that are usually installed on stairs, railings, balconies, etc., and are members of railings or railings (top surface) for people to support when walking.
The materials are mostly wood, but also metal, plastic, terrazzo, marble, etc. It is required to be safe, firm, beautiful, with a smooth surface without sharp edges and corners.
The form can be designed at will, but the width is based on the principle of being able to hold it comfortably, generally 40-60mm, and the widest should not exceed 95mm, and it needs to be set continuously along the full length of the stairs and stair landing.
