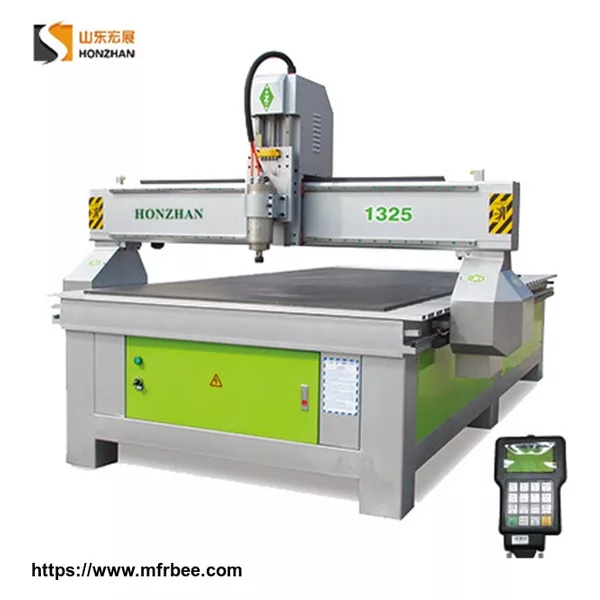

Honzhan HZ-R1325 CNC Router with DSP controller
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
1). Furniture Decoration Industry: A large area flat plate engraving , wood panel furniture carving, wood art murals, wood cabinet doors carving.
2). Wood Products Processing: Sewing machine table, electrical counter table, sports equipment.
3). Artwork: Photo frame, jewelry box. Musical Instrument Industry: Instrument three-dimensional surface engraving, shape cutting.
| Model | HZ-R1325 |
| Working size | 1300*2500*200mm |
| Spindle |
3.2kw water-cooled spindle,
optional 3.5kw, 4.5kw 5.5kw, 7.5kw spindle or air-cooled spindle |
| Spindle speed | 0-24000rpm/min |
| Drive system | Leadshine driver and step motors, optional servo motors |
| Max traveling speed | 30000mm/min |
| Working speed | 0-20000mm/min |
| Machine structure | Steel structure bed, aluminum profile with PVC countertop |
| Structure | Thick and reinforced square tube welding |
| Countertop material | T-slot thickened aluminum profile with PVC countertop |
| Material fixing | Use Fixture |
| Tool sensor | Auto Tool sensor |
| Transmission | High-precision helical rack gear, Good quality Square Linear guide, TBI Ball Screw |
| Oiler | Auto oil lubrication system |
| Inverter | 3.7kw Fuling inverter, optional 5.5kw |
| Control system | RichAuto DSP Controller |
- Country: China (Mainland)
- Business Type:
- Market:Africa,Americas,Emerging Markets,Asia,Europe,European Union,G20,Middle East,Oceania
- Founded Year:2014
- Address:Beiyuan road, Jinan city, Shandong province, China
- Contact:Alice Wang
