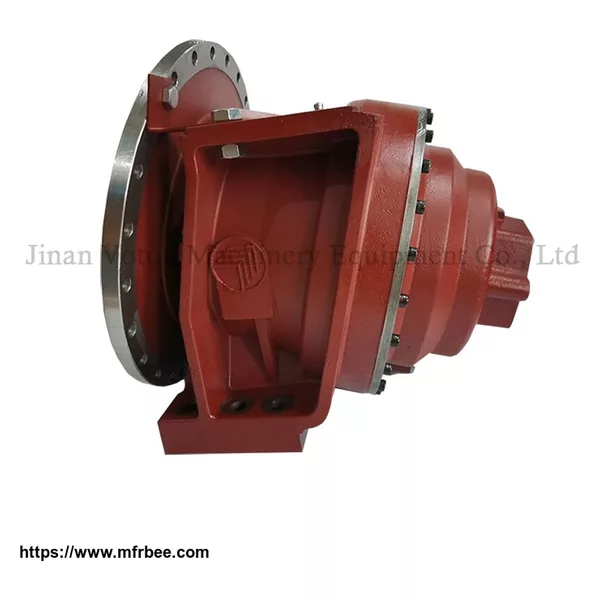

Bonfiglioli Reducer
Product sourcing details
- Place of Origin
- China
- Packaging
- wood box
Supplier: Jinan Voton Machinery Equipment Co., Ltd.
Purchasing information
- Minimum order
- 1
- Lead time
- As your demand
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications
Bonfiglioli Reducer
Requires trouble-free operation, quality will be the highest priority
High reliability, low maintenance, compact design and reasonable price are the characteristics of the new generation of 500 series reducers, and they are the ultimate choice for mixer truck drive.
8 models and matching range are used for 1-12 cubic meters of mixing conveyor.
Torque range: 3,000…75,000Nm
Mixing conveyor specifications: 1-12m3
Speed ratio: 17---161
Main features:
1. Flange rotation output
2. High-strength design
3. High torque
4. Large carrying capacity
5. Inclined output flange, 360° adjustment range
6. Comes with water tank base
7. Optional pump power port P.T.0
8. Optional speed sensor interface
9. Supporting motor
10. Axial piston motor SAE standard, cycloid motor
Specification
| Model | 575L | 577L | 580L |
| Max Rated Torque Nm | 50000 | 60000 | 75000 |
| Rations 1: | 101 | 131 | 130-147 |
| Max Output Speed rpm | 20 | 20 | 20 |
| Drum Capacity *m³ | 6-8 | 8-10 | 10-12 |
| Weight kg | 250 | 290 | 320 |
| 0il Quantily L | 7 | 8.5 | 10 |
| Oil Type | SAVE 85w/140 with EP properties, as per API G15 standard | ||
| Water Pump PTO | Optional | ||
| Pick-up Speed Sensing | Optional | ||
| Hydraulic Motor Mounting Pattem | To SAE standard J744C -SAE C 16/32- -21T-23T |
