LS110 light transmittance meter
Product sourcing details
- FOB Price
- USD $292.00 / Piece
- Place of Origin
- China(Mainland)
- Packaging
- 1 pc each box
Supplier: linshangtech
Purchasing information
- Minimum order
- 1
- Lead time
- 5 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications
LS110 Light Transmittance Meter Introduction
Linshang LS110 wireless split type light transmittance meter is mainly used for light transmittance detection of transparent materials such as glass, acrylic and film. This car window tint light
transmittance meter has three independent test units. The displayed visible light transmittance is the average of three measurement data. The instrument use a visible light source to illuminate the
tested transparent materials. The sensor detects the incident light intensity of the light source and the light intensity after passing through the tested transparent materials, expressed as a
percentage.
LS110 Light Transmittance Meter Application
The LS110 portable light transmittance tester uses a split design. It consists of two parts: the main part (PART I) and the auxiliary part (PART Ⅱ). The main and auxiliary parts have super strong

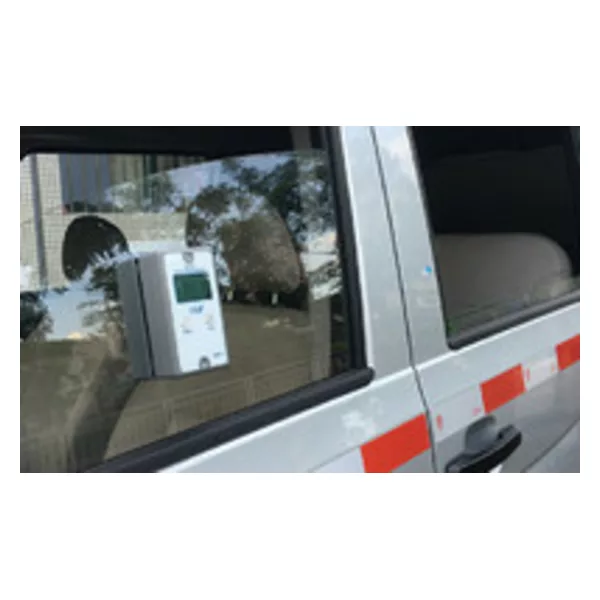

magnetic force and can be automatically closed together. It is widely used in the transmittance test of installed materials such as automobile front shield and curtain wall glass.
LS110 Light Transmittance Meter Parameters
| Spectral range | 380nm-760nm full wavelength, in line with CIE photopic luminosity function |
| Measurement accuracy | better than ± 2% (colorless and uniform transparent materials) |
| Resolution | When the measured value is the resolution is 0.1%; for other ranges,the resolution is 1% |
| Test samplesize | bigger than 40mm × 40mm |
| Power supply | Built-in lithium rechargeable battery |
| Dimension | 130mm × 70mm × 84mm (L*W*H) |
| Weight | 630 g |
