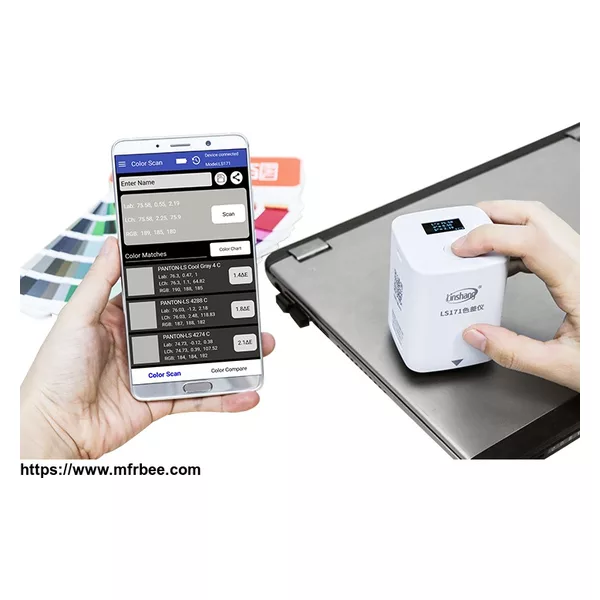

LS171 colorimeter
Product Quick Detail
- FOB Price
- USD $75.00 / Piece
- Place Of Origin
- China(Mainland)
- Minimum Order
- 1
- Packaging
- 1 pcs each box
- Delivery
- 15 Days
Specifications
| Illumination geometry | D/8, Specular Component Include (SCI) |
| Illumination light source | Full spectrum LED light source |
| Measuring aperture | 8mm |
| Measurement conditions | Light source D65, field of view 10° |
| Measuring time | about 1s |
| Color spaces | CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex |
| Color difference formulas | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00 |
| Repeatability | Standard deviation ΔE*ab is within 0.03 (average value of 30 measurements on whiteboard every 3s after calibration) |
| Power supply | Rechargeable lithium battery 3.7V@700mAh, can continuously measure 10,000 times under full charge |
| Dimension | 57×57×89.4mm (L*W*H) |
| Weight | about126g |
| Display | 0.96 inch OLED |
| Data transmission | Bluetooth |
| Charging port | USB (Type-C) |
| Operating temperature | 0~45℃, 0~85%RH (no condensation) |
| Storing temperature | -25~55℃, 0~85%RH (no condensation) |
