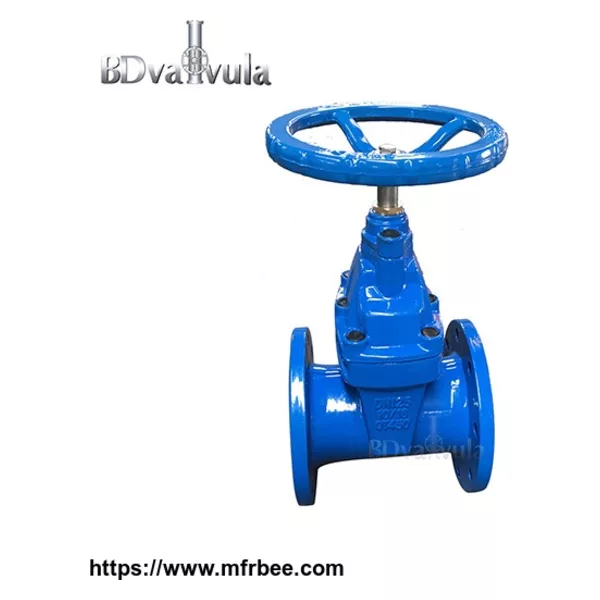

Parts and materials |
Valve Body |
Bonnet |
Stem nut |
Disc |
sealing ring |
Stem |
Bonnet Gasket |
Holding ring |
1. Gate valve s are not recommended for throttling service. 2. These valves are to be used either fully closed or fully open position. 3. Different colours toidentify differents fluids. |
Valve body GGG40 Bonnet GGG40 Sealing ring Brass Disc GGG40+EPDM Stem nut DN50-350 Brass, DN400-600 GGG40 Stem SS410 Bonnet gasket EPDM O-ring NBR/EPDM Rated operating pressure PN 1.0/1.6MPa Test pressure Intention 1.5/2.4MPa Hermetic 1.1/1.76MPa Working temperature T ≤120°C ...
