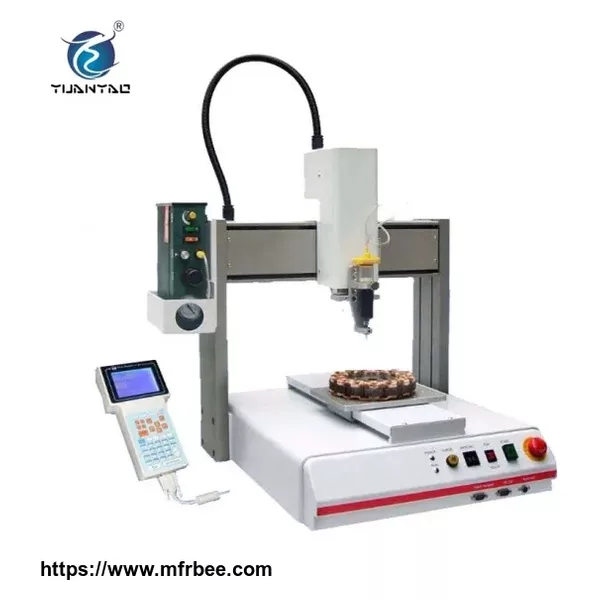

Automatic Desktop Glue Dispensing Robot Machine
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- sales05@yuanyao-tech.com
- Packaging
- good package
- Delivery
- 15 Days
Specifications
Main features of the equipment:
1. Keyboard control in English version, easy operation.
2. Functions: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.
3. Equipped with software that has the area display, translation rotating operation functions.
4. Be able to set size of gluing area, speed of gluing, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
5. According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.
6. General applications: Widely applied to fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...
7. Applicable objects: Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.
In addition to High Performance Glue Dispensing Robot Machine, we are also manufacturing:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Other styles with different configurations are also avaialble upon request, welcome to enquire and purchase!
| Configurations of different styles: | ||||
| Name | Quantity | Unit | Remarks | |
| Motor | 3 | set | Micro stepping motor | |
| High precision dispensing valve | 1 | pc | Optional | |
| Movement vontroller | 1 | set | | |
| Automatic dispenser software | 1 | set | Automatic independent R&D | |
| Dispensing controller | 1 | set | SMC/MAC | |
| Specification | ||||
| Model | PY-220D | PY-330D | PY-440D | PY-550D |
| Working Area | 200*200*50mm | 300*300*100mm | 400*400*100mm | 500*500*150mm |
| Max. Speed | 500mm/sec | |||
| Resolution | 0.02mm | |||
| Repeatability | ±0.02mm | |||
| Operator system | LCD panel/keyboard | |||
| Drive Mode | Micro stepping motor/belt | |||
| Power | AC 220V 50-60 Hz 0.8KW | |||
| Size | 380*370*500mm | 480*500*600mm | 580*600*600mm | 640*700*720mm |
| Weight | 20KG | 30KG | 40KG | 50KG |
| Work Environment | Temperature: 0-40ºC, Humidity: 20-90%RH |
