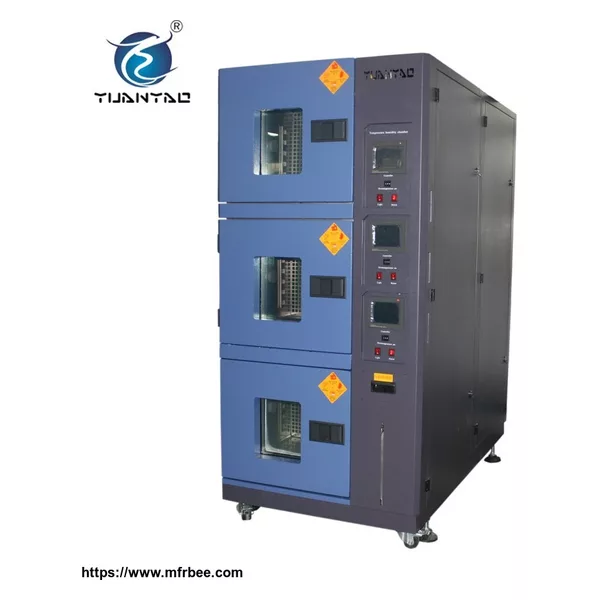

Three Zones Constant Temperature Humidity Environmental Tester Chamber
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- sales05@yuanyao-tech.com
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Triple Type Constant Temp. Humi. Environmental Tester
Application:
Three Layers Constant Temperature and Humidity Test Cabinet, used for material performance test under different environment, such as heat, cold, moisture, heat and moisture, mainly applied in electronics, electrical appliances, mobile, communications, instruments, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and other industries.
Features:
1.Touch screen controller.
2.Automatic water filling(optional).
3.Access to PC remote control and monitoring.
4.Customization services.
5.With national patents.
High low temperature tester Specification:
| Three Zones Temperature Humidity Chamber | ||
| Model | YTHG-072 | YTHG-162 |
| Inner chamber size W×H×D(cm) | 100×40×40 | 60×45×60 |
| Exterior chamber size W×H×D(cm) | 100×200×170 | 120×215×185 |
| Testing temperature range | -70ºC,-60ºC,-40ºC,-20ºC,0ºC~150ºC,Other temperture can be customized | |
| Testing humidity range | 20%RH~98%RH(low humidity 10% RH~98RH or 5%RH~98%RH can be customized | |
| Temp.humi.fluctuation | ±0.3ºC;±0.5%RH | |
| Temp.humi.uniformity | ±2ºC;±3%RH (empty loading after stablize for 30mins) | |
| Temp.humi.resolution | 0.01ºC;0.1%RH | |
| Heating&cooling time ºC/min | Heat-up:3ºC/min(average),cool-down:1ºC/min(average) | |
| Exterior chamber material | Cold rolled plate + Powder coating | |
| Inner chamber material | SUS#304 Stainless steel | |
| Insulation material | PU+ fiberglass wool | |
| Circulation system | Centrifugal fan air circulation system | |
| Heating system | SUS# Stainless steel high-speed heater | |
| Humidification system | Electrothermal steam humidification | |
| Dehumidifying | ADP critical dew point cooling/ dehumidifying method | |
| Refrigeration system | Compressor + Finned evaporator + Air(Water) cooling condenser | |
| Controlling system | Touch screen controller+SSR+PID | |
| Other components | Vacuum glass observation window | |
| Test hole (50mm),Control status indicator | ||
| Interior light, Compartment shelf (2 freely adjustable) | ||
| Safety protection device | Humidification system overheat protection,Compressor overload protection | |
| Control system overload protection,overload indicator | ||
| Phase sequence protection ,Water shortage protection | ||
| High voltage and low voltage protection,Over temperature protection | ||
| Water supply dely protection,Fan overcurrent protection | ||
| Power supply | AC 1ψ 220V; 3ψ380V 60/50Hz | |
| Customization service | No-standard or special requirements are all welcome |
2. We produce in strict accordance with international safety standard.More detail of temperature humidity tester
Industrial test equipment Production Line:
1. We have independent workshops, they are consist of material bending and welding area, machine assemble area, electric system area, cooling system area ,testing and finished product area.
3. Many stock spare parts in warehouse ensure customer can get soon when they need.
Yuanyao profile
Industrial test equipment Production Line:
1. We have independent workshops, they are consist of material bending and welding area, machine assemble area, electric system area, cooling system area ,testing and finished product area.
3. Many stock spare parts in warehouse ensure customer can get soon when they need.
Yuanyao profile
