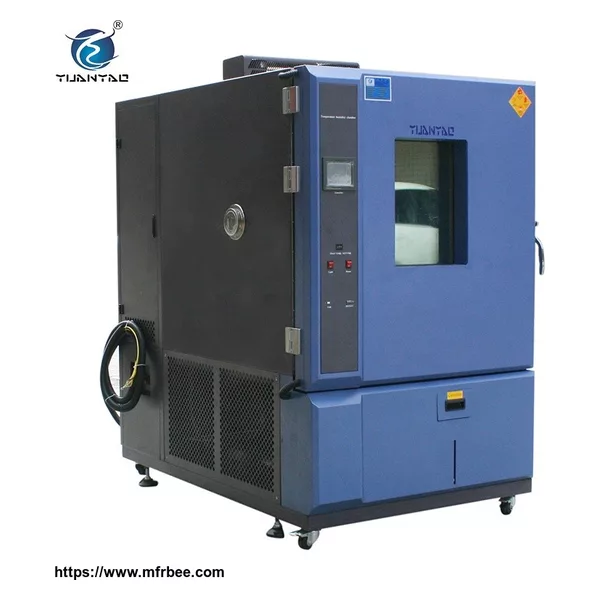

Lab Battery Pack Reliable Temperature Humidity Cycle Climate Chamber
Product sourcing details
- Place of Origin
- China
- sales05@yuanyao-tech.com
- Packaging
- good packgae
Supplier: Guangdong Yuanyao Test Equipment Co., Ltd
Purchasing information
- Minimum order
- 1
- Lead time
- 15 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications
2.Features:
Korea Samwontech
controller,5 different language
Automatic water filling (optional)
Access to PC remote control and monitoring
Customization services
Obtain national patents
Technicial details:
| Model | YTH-080 | YTH-150 | YTH-225 | YTH-408 | YTH-800 | YTH-1000 |
| Inner chamber size W×H×D(cm) | 40×50×50 | 50×60×50 | 50×75×50 | 80×85×60 | 100×100×80 | 100×100×100 |
| Exterior chamber size W×H×D(cm) | 60×172×120 | 70×174×130 | 70×172×181 | 100×182×197 | 120×197×197 | 120×197×217 |
| Testing temperature range | -70ºC,-60ºC,-40ºC,-20ºC,0ºC~150ºC,Other temperature can be customized |
| Testing humidity range | 20%RH~98%RH(Low humidity 10%RH~98%RH or 5%RH can be customized) |
| Temp.humi.fluctuation | ±0.3ºC;±0.5%RH |
| Temp.humi.uniformity | ±2ºC;±3% empty loading after stablize for 30mins ±2ºC;±3%RH |
| Temp.humi.resolution | 0.01ºC;0.1%RH |
| Heating&cooling time ºC/min | Heat-up:3ºC/min(average),cool-down:1ºC/min(average) |
| Exterior chamber material | Cold rolled plate + Powder coating |
| Interior chamber material | SUS#304 Stainless steel |
| Insulation material | PU |
| Circulation system | Centrifugal fan air circulation system |
| Heating system | SUS# Stainless steel high-speed heater |
| Humidification system | Electrothermal steam humidification |
| Dehumidifying | ADP critical dew point cooling / dehumidifying method |
| Refrigeration system | Compressor + Finned evaporator + Air(Water) cooling condenser |
| Controlling system | Touch screen controller |
| Other components | Vacuum glass observation window |
| Test hole(50mm) | |
| Controller status indicator | |
| View light | |
| Compartment shelf (2 freely adjustable) | |
| Safety protection device | Overheat protection circuit breaker |
| Humidification system overheat protection | |
| Compressor overload protection | |
| Control system overload protection | |
| overload indicator | |
| Phase sequence protection | |
| Water shortage protection | |
| High voltage and low voltage protection | |
| Over temperature protection | |
| Water supply delay protection | |
| Fan overcurrent protection | |
| Power supply | AC 1ψ220V;3ψ380V 60/50Hz |
| Customization service | Non-standard or special requirements are all welcome |
