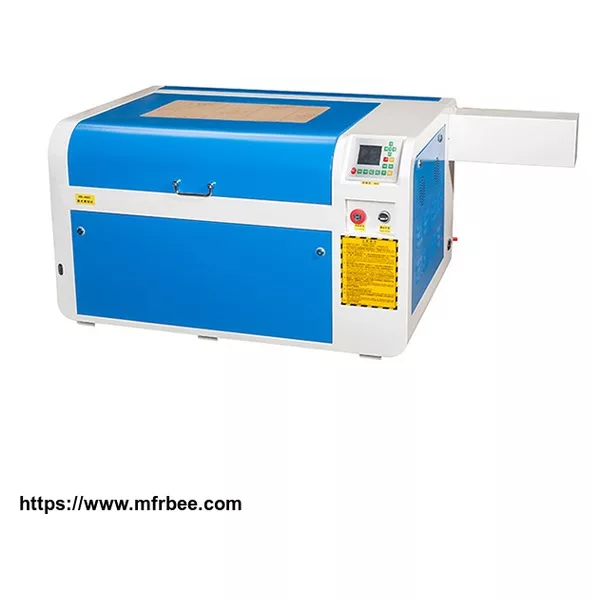

Model:FST-6040
Laser type:sealed CO₂ glass laser tube
Laser power:40W/50W/60W/80W/100W
Engraving speed:0-30000mm/min
Cutting speed:0-3600mm/min
Cutting thickness:0-20mm ( depends on materials)
Resolution rate:±0.05mm
1) Adjustable Speed and Power, Smooth and Precise Engraving and Cutting.
2) USB Interface, U-Disk(offline), Ethernet cable, WIFI (Optional parts)
3) Air Assist, Remove heat and combustible gases from the cutting surface.
4) Embedded Exhaust Fan, Easier install, Safer transport.
5) Rotary Axis, Engrave any cylindrical object. (Optional parts)
6) Aluminum Knife Worktable or Honeycomb Worktable.
7) Intuitive Control Panel, Set Speed, power and more controls directly from the laser.
8) Water Cooling and Protection System.
9) Red light positioning.
10) Emergency Stop Button.
11) Larger Size, 400*600mm working area.
12) The lifting platform is electric control.
13) Drag - and - chain transmission line.
14) Laser focal length: 5CM.
Model | FST-6040 |
Working area | 400*600mm |
Laser type | sealed CO₂ glass laser tube |
Laser power | 40W/50W/60W/80W/100W |
Working Platform | Aluminum Knife Worktable or Honeycomb Worktable |
Engraving speed | 0-30000mm/min |
Cutting speed | 0-3600mm/min |
Cutting thickness | 0-20mm ( depends on materials) |
Resolution rate | ±0.05mm |
Data transfer interface | USB2.0、U-Disk、Ethernet cable、WIFI(Optional parts) |
Working voltage | 220V±10% 50HZ ,110V±10% 60HZ |
Min shaping character | Character: 2*2mm letter: 1*1mm |
Supported graphic formats | BMP PCX TGA TIF PLT CDR |
Controlling software | RD works |
Working temperature | 0-45°C |
Working humidity | 5%-90% |
Rsolution ratio | <4500DPI |
Optional parts | Rotary Axis,Water Chiller |
Warranty | The whole machine 1 year (except the laser tube and mirrors lens ) |
Package | Plywood |
1. How can I choose the most suitable machine?
Please tell us three questions, our customer service staff will recommend the most suitable product for you.
1) Which material is mainly used for? Cutting, engraving or marking?
2) What is the max thickness of the cut?
3) How big working area you need?
2. How long can deliver the machine?
Common machine can be delivered within 3~7 days. Custom-made machine needs 12~14 days.
3. Is there any after-sales service?
Yes, we have a perfect after-sale service team to supply technical support to our customers.
Our technicians can assist you to install the machine and give you free training after you receive machine.
Applicable materials: Non-metal materials such as double color board, Plexiglas,glass, bamboo and wood, rubber, stone, marble, granite and tiles, fabric leather etc. Applicable industry: Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, ...
1. Machine features: 1). Simple and convenient operation, saving labor time, can do engraving and cutting functions, high efficiency. 2). The engraving precision is high, the material will not be deformed, the cutting effect is completely consistent. 3). Good cutting effect: ...
