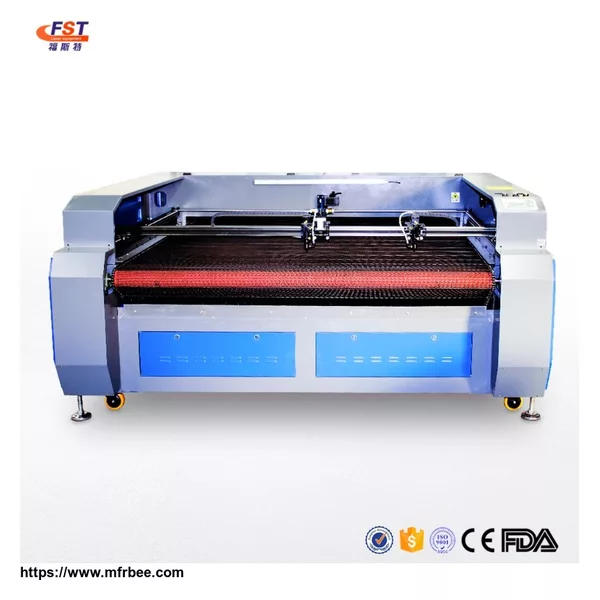

FST-1610 Laser Cutting Machine

Place Of Origin
China
Minimum Order
1
Packaging
customed
Delivery
15 Days

Quick Information

  • Brand Name:FosterLaser
  • Place of Origin:China
  • :

Description

FST-1610 Laser Cutting Machine

Model:FST-1610

Engraving area:1600*1000mm

Laserpower:80W/100W/130W/150W/160W/260W

Engraving speed:500mm/s Max

Engraving depth:5mm

Power supply:220V(or110V)+/-10% 50Hz

Description:

Parameter:

Model FST-1610
Worktable honeycomb or blade
Engraving area 1600*1000mm
Laser Power 80W/100W/130W/150W/160W/260W
Engraving Speed 5000mm/s Max
Engraving Depth 5mm
Cutting Speed 600mm/s
Cutting Depth (Acrylic) 0-20mm (acrylic)
Up and down work table Ec Up and down 550mm adjustable
Minimum Shaping Character 1*1mm
Resolution Ratio 0.0254mm (1000dpi)
Power Supply 220V(or110V)+/-10% 50Hz
Resetting Positioning Accuracy less than or equal to 0.01mm
Water protecting sensor and alarm Yes
Operating Temperature 0-45℃
Operating Humidity 35-70℃
Graphic Format Supported PLT/DXF/BMP/JPG/GIF/PGN/TIF
Operation System Windows 98/ME/2000/XP/VISTA/Windows 7/8
Software Lettro/Rudai
Engraving on Curve Surfaces(Yes/No) No
Control Configuration DSP
Water Cooling(Yes/No) Yes
Cooling System Water Cooling and protection system
Laser Tube Sealed CO₂ glass laser tube
Machine Dimension 2240mm * 1760mm *1020 mm
Gross Weight 800kg

Application Industry:

Application Materials:

Details:

Accessories:

Factory:

Certification:

Service:

FAQ:

1. How can I choose the most suitable machine?

Please tell us three questions, our customer service staff will recommend the most suitable product for you.

1) Which material is mainly used for? Cutting, engraving or marking?

2) What is the max thickness of the cut?

3) How big working area you need?

2. How long can deliver the machine?

Common machine can be delivered within 3~7 days. Custom-made machine needs 12~14 days.

3. Is there any after-sales service?

Yes, we have a perfect after-sale service team to supply technical support to our customers.

Our technicians can assist you to install the machine and give you free training after you receive machine.


Price

  • Delivery Port :Qingdao

Packaging & Delivery

  • Packing :According to customer requirements
  • Delivery Lead Time :7-15 Days
  • Supply Ability :500sets/month
  • Country: China (Mainland)
  • Business Type: Manufacturer
  • Market:Africa,Americas,Emerging Markets,Europe,Middle East
  • Founded Year:2015
  • Address:No. 16, Row 8, Jiaming Industrial Park, Dongchangfu District, Liaocheng City
  • Contact:Camilla Zhang
