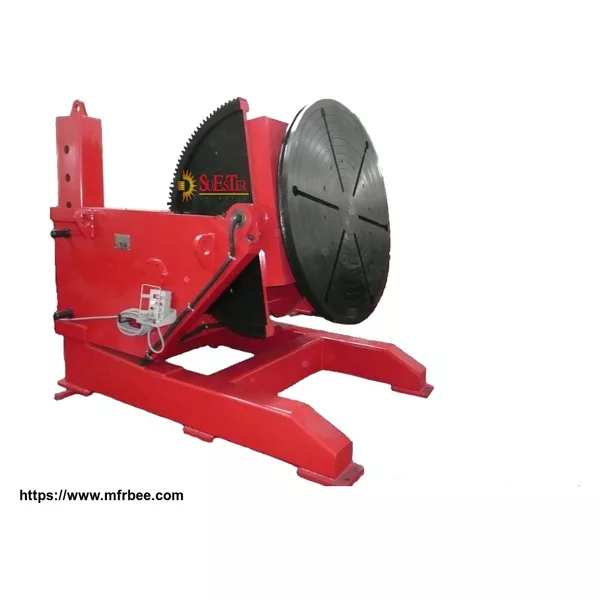

Welding positioner normally composed by worktable slewing mechanism and turnover mechanism, which let the work piece that fixed on the worktable in the desired welding or fitting angle by worktable’s lifting, turnover and slewing. And the worktable’s slewing is frequency inverter stepless speed regulation to achieve the satisfactory welding speed.

type	Rated load(kg)	Rotating speed(rpm)	Overturning angle(°)	Size of working table(mm)	Motor power
rotating	overturning
HBJ-1	100	0.12-1.2	0-90°	400	0.18	0.18
HBJ-3	300	0.2-2	0-90°	600	0.37	0.37
HBJ-6	600	0.09-0.9	0-90°	1000	0.75	0.75
HBJ-10	1000	0.05-0.5	0-120°	1200	1.1	1.5
HBJ-30	3000	0.05-0.5	0-120°	1400	1.5	1.5
HBJ-50	5000	0.05-0.5	0-120°	1500	2.2	3
HBJ-100	10000	0.017-0.17	0-120°	2000	3	5.5
HBJ-200	20000	0.015-0.15	0-120°	2300	5.5	7.5
