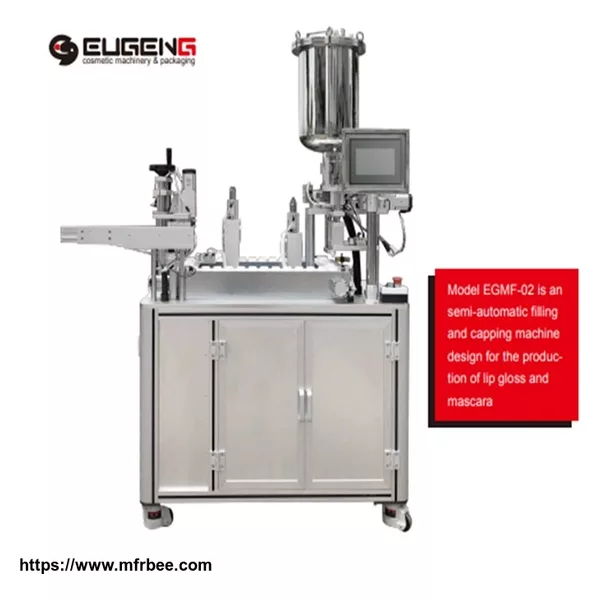

Lip Gloss Filling And Capping Machine

Model	EGMF-02
Production type	Push Pucks
Output capcity/hr	1800-2100pcs/h
Control type	Servo motor&Air Cylinder
No.of Nozzle	1
Number of pucks	39
Vessel volume	30L/set
Display	PLC
No.of operator	2-3
Power consumption	2.5kw
Dimension	1.50.81.9m
Weight	450kg
Air input	4-6kgf

It is semi automatic filling and capping machine,suitable for lip gloss,mascara,eyeliner,nail polish,cbd oil,e cigaratte oil,eye drops,essential oil,perfume etc..

For filling tubes and bottles with volume 1-30ml.

Working process:

1.feeding bottles/tubes manually

2.auto fillng,filling volume and speed adjustable

3.plug feeding manually

4.caps feeding manually

5.auto capping,capping speed and torque adjustable

6.auto unloading

Main Features

1 set 30L pressure tank with inner plug for high viscosity materials
2.Piston controlled dosing pump, and with servo motor driving , filling while tube moving down

3.Machine with sucking back function so that prevent dripping
4.Accuracy +/-0.5%
5.Filling unit designed for easy strip-down cleaning and re-assembly to facilitate quick change over
6.Servo-motor capping unit with adjusted torque,capping feed and capping height also adjustable
7.Touch screen control system with Mitsubishi brand PLC

Servo motor Brand:Panasonic Original: Janpan

Servo motor control the capping , and torques can be adjusted , and reject rate is less than 1%

8.Equipped with pressure plug and can be equipped with heating and mixing device if your product needs to be heated
