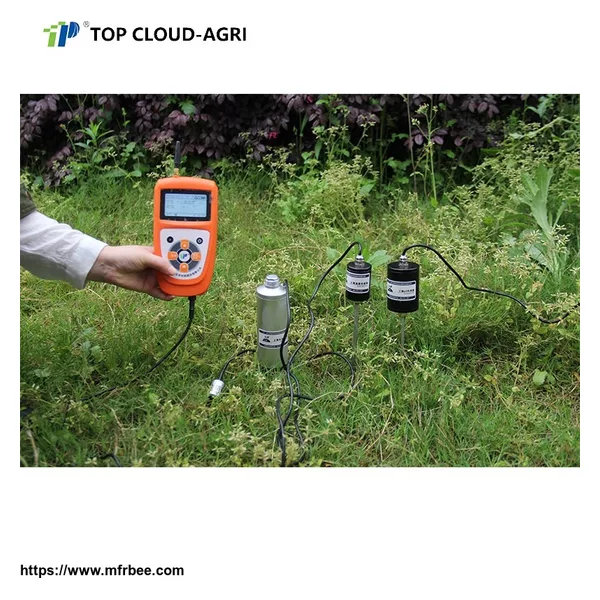

Portable Digital Soil Moisture Meter

Characteristic：

Handset：

1. Small and exquisite, easy to carry and LCD display; 2. Collect settings: working unattended can be set to timing or manual collect data, recording and save data automatically; 3. Both AC and DC available, internal lithium battery: 8.4v 1500mAh, with function: charging protection, low voltage prompt. Also can be placed for a long time to record location; 4. Storage capacity: up to 30,000 groups in handset, and standard equipped with 4G Micro SD. 5. Data can be read on handset and also import to PC. 6. Power-off memory function: data already saved in SD card won’t lose when lose power. 7. Probe to probe Consistency, handset can connect different kinds sensor by concentrator without influence on accuracy. 8. Auto detection: when sensor connects to handset, you can search different sensor. 9. Synchronous detection: 32 channels to detect same time as you combine. 10. RS485 wire communication, sensor communication cables could reach about 100 meters. 11. Low-power design, equipped with system monitor and protection function to avoid short circuit or interference from external.

Software：

1. Showing the curve trends of each parameter, Max, Min, and Avg. Zoom in and out function.
2. Coloring the overrun area functionwhich is visual display.
3. Save the data in EXCEL format as a copy.
4. Be able to view period of parameter or graph, and can be printed.
5.All curvilinear coordinates can be set and move, which make analysis easier.

Handset technical parameters:

1. Storage capacity: almost up to 30,000 groups in handset, and equipped with 4G Micro SD. 2. Data-collection interval: 5min~99hour 3. Working power supply: 8.4V lithium battery 4. Working current: stand-by power consumption 10mA, working power consumption according to the configuration.

Soil Temperature	Unit: °C Range: -40°C~100°C Accuracy: ±0.5°C Sensor length: ≧25cm Resolution: 0.1°C
Soil moisture content	Unit: %(m³ ) Range: 0~100% Response time: ≤ 2s Relative error: ≤3% Standard cable length: 1.5m (customerized: up to 1000m) Optional accessories: for measuring the moisture content of Deep soil, soil auger is recommend .
Soil salinity	Range: 0~19.99ms/cm Sensors can be buried into soil.

Technical parameters

1. Soil moisture

Unit	% (m3/m3)
Test range	0-100%
Test time	≤2S
Absolute error	≤2%
Relative error	≤3%
Moisture probe working temperature	-10~70°C
Moisture probe size	ss probe:80mm, Whole length:205mm
Standard cable length	1700mm(can custom according to client’s requirement, max length: 100 meters)

2. Soil temperature

Unit	°C
Test range	-55~99°C
Test time	≤2S
Absolute	±0.5°C
Probe length	stainless steel part: 20cm
Saving data	2000 groups
Standard cable length	1700mm(can custom according to client’s requirement, max length: 100 meters)
