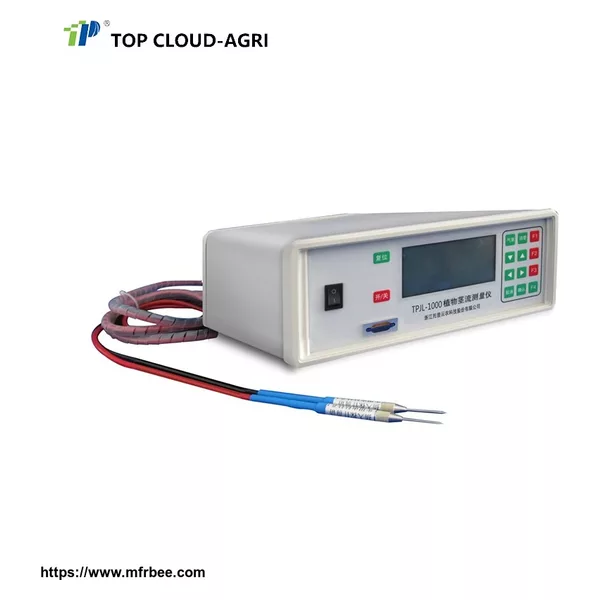

Sap Flow System

Introduction

This instrument uses the heat dissipation probe to measure the instantaneous runoff density of the trunk. It can continuously observe the sap flow of the trees for a long time, which is conducive to studying the water exchange law between the trees and the atmosphere. and use this as a means of observation to monitor the impact of forest ecosystems on environmental changes for a long time.

Characteristics

1. Probe can be reused: Double Probe, drilling tool

2. Constant temperature heating: adopt heat dissipation method,stable data

3. Durable: stainless steel probes.

4. The collection time interval (1-99) and the end time can be set. The standard SD card has no upper limit for data storage and can be exported and analyzed.

5. Customizable AC/DC dual-purpose instruments.

6. High measurement accuracy.

Technical parameters

Measurement Method	Heat dissipation probe method (constant heat flow sensor method)
Measurement parameters	instantaneous liquid flow density
Probe length	33mm
Number of probe	2
Display	320*160 LCD
Storage capacity	2 GB
Sampling time interval	adjustable for 1-99 minutes
Power supply	8.4 V rechargeable lithium battery (customizable solar power)
