Plant Canopy Analyzer

Introduction

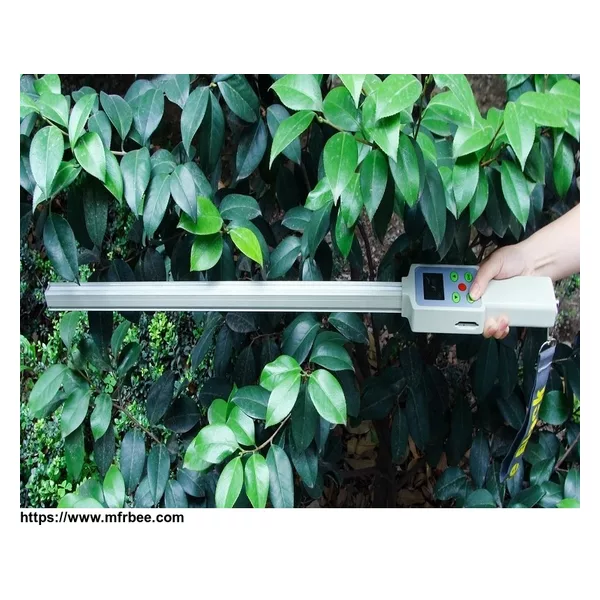

TOP-1000 Plant Canopy Analyzer is widely applied for farming production and agricultural research, canopy energy resource investigation, measure the light interception among plant canopy, and research the relation between plant growth & development, production quality and light utilization. The analyzer is used for measure and record the PAR value in wave band400nm-700nm , the measured value is 0-2700μmol ㎡/s

Features

1. Integration design, it includes LCD, operation buttons, SD card plug and measure probe. 2. Menu operation is easy; small size and portable 3. Large store capacity. Convenient data management. 4. Low power dissipation with reasonable power management with automatically shut down and restarts action. 5. Manual and auto measure method are available.

Technical parameters

Measuring Range	0-2700μmol ㎡/s
Resolution	1μmol ㎡/s
Response time	10μs
Auto- collecting interval	1-99minutes
Auto-collecting times	1-99times
Store capacity	2GB（SD card）
Meter length	75 cm
Probe length	50 cm
Qty of Sensors	25（standard equipped）
Power	2*AA batteries
Working environment	0°C-60°C；100%HM
