Vacuum Seed Counter

Introduction

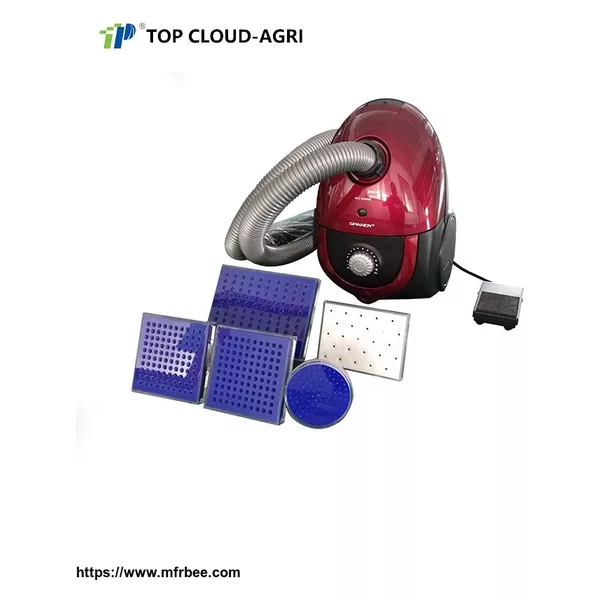

The ZLC-2000 Vacuum Seed Counting& Placing Instrument is specially designed for seed counting, seed suction and seed placing in seed germination experiment. It is composed of the main body, the sucker and the suction head. The lower part of the instrument body has been fixed with high speed vacuumize fan machine which has a strong suction and could receive 24kpa of vacuum degree and a low noise. A feculence isolation bag was placed inside of the middle of the instrument body, thus the sundries and moisture which has been sucked into the instrument bogy could be easily cleaned out. A suction regulation switch was fixed on the exterior of instrument body, the suction could be regulated depending on the size of seed granule. A deflation switch was placed on the inserted handle of the extension sucker to ensure the steady dropt of the seed. The button control switch was placed on the exterior of the instrument. The instrument was equipped with 5 seed sucker whose size was corresponded with the common germination box to satisfy the germination of different kind of seed germination experiment. The instrument body owns a luxury streamline figuration and a small volume which could be moved conveniently.

Characteristics

1. Used for seed counting, suction and placing in the course of seed germination.
2. Made up of main machine, suction tube and suction head.
3. with control button to control the suction power according to seed size.
4. With 5 different seed suction heads, its size and specification match with Petri dish, meet needs of different seed germination.

Technical parameters

Temperature	≤ 40 °C
Power	1200W 220V/50Hz
Voltage	220V/50HZ
Machine size	30×254×40CM
Suction plate	: 5pcs
Suction size	128.8 (100holes, for corn, 1pc); 16.712 (1pc);10.3*10.3 (100 holes, 2pcs), Φ8 (100 holes/pc)

Sort	Sucked Seed	Sucked amount	Figure	Incubation utensil
A	Corn/bean/Cotton seed/big granule vegetable seed	50	rectangle	PL18 PH18
B	rice/wheat/barley/kaoliang	100	rectangle	PL18 PH18
C	rice/wheat/barley/kaoliang	100	Square	PL12 PH12
D	Rape seed and middle or small granule vegetable seed	100	Square	PL12 PH12
E	small granule vegetable seed	100	roundness	φ9mm glass utensil
