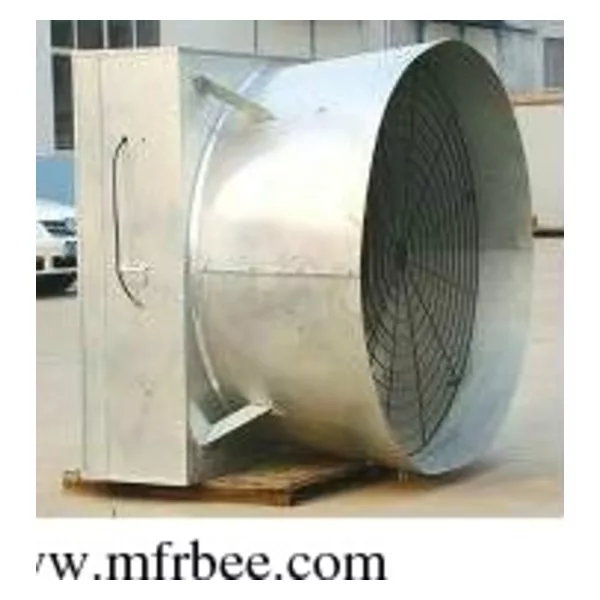

SD automatic poultry ventilation system
Product Quick Detail
- Place Of Origin
- china
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
| Technical Data: Airflow： 44500m3/h Fan Box size：1380mm×1380mm×(630+420)mm Diameter of Cone: 1430mm. Diameter of Blade: 1250mm Material： Box and Cone: Galvanized Steel Sheet, thickness 1mm; Blade: Stainless Steel Sheet, thickness 1.2mm Shutter: Galvanized Steel, thickness 0.45mm Motor： CCC certificate, Made in China 1.1Kw 380V 50Hz 3phase RPM: 1400r/min Blade No.：6pcs Shutter No.： 10pcs belt： Made in China, with belt tension Weight: 104KGS. Certificate:CE certificate ,ISO 9001 certificate, AAA quality certificate Suggestion: 1) Because of the front tunnel, the cone fan can gather and discharge all the waste gas strongly. The cone fan has bigger air flow, so if the workshop is longer than 80m, this type is the best choice. Our company insists on the good faith, and tries our best to service for the domestic and international customer!. We welcome the customers to visit ! We thanks for the client support,push to cooperate with the client further,create bright future together ! u can contact our Marketing departments by email directly,sdequipmentfactory<at>gmail.com |
you can try for poultry to get through more products
