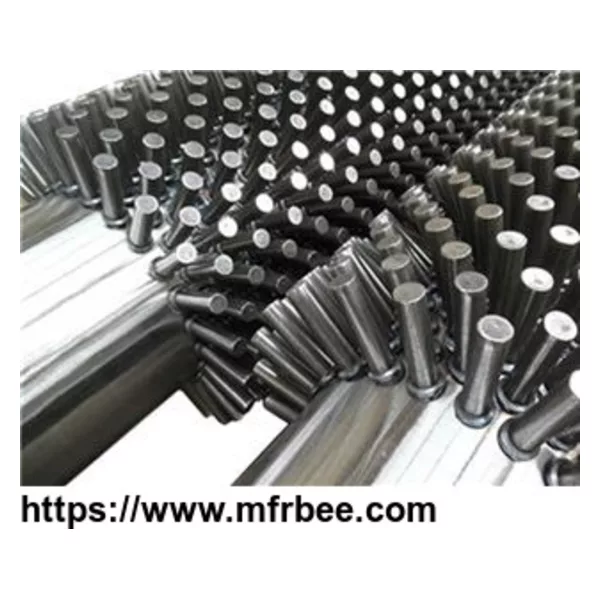

Studded Pin Fin Tube | |
Outside Diameter | 6.0-60.3mm |
Wall Thickness | 0.6-6.0mm |
Length | Up to 25m |
Standard | A213, A312, A789, A268, A179, A192, EN10216, etc. |
Grade | TP304, TP304L, TP316, TP316L, T5, T9, T11, T22, etc. |
Delivery Condition | Pickled, Polished, Bright Annealed |
Technique | Seamless/Welded |
Application | Heat exchanger, boiler, cooler, heater, etc. |
Marking | LOGO, Standard, Grade, Size, Heat Number. |
Package | Woven bag, wooden cases, or as per customer's requirement. |
Quality Requirement | Mill Test Certificate (EN 10204/3.1); Third Part Inspection is acceptable. |
