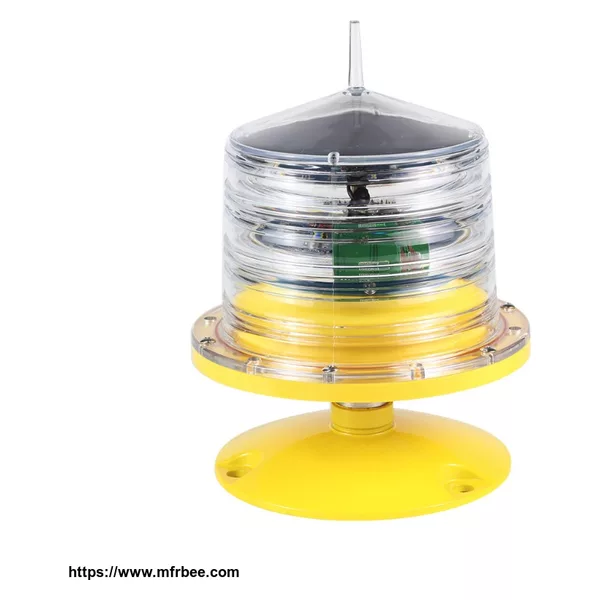

Solar powered heliport elevated edge light
Product Quick Detail
- FOB Price
- USD $98.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- 4pcs/box
- Delivery
- 15 Days
Specifications
GS-HP/ET Solar Elevated TaxiwayEdgeLight adopts high intensity injection molding Material, with excellent specific of waterproof and anti-aging.
Inner adopts LED light source cooperate with advanced optical lens design, emitted angle follow FAA standard.
This product can indicate for airport taxiway edge, it can send out omnidirectional blue(or red ) light signal at low visibility daytime and night ,which can show the taxiway direction and location.
| Name | Parameter |
| Model | GS-HP/HB |
| Power Supply | Solar powered supply |
| Solar panel power | 2.8W |
| Battery voltage | 3.2V |
| Battery capacity | 3.2V3AH |
| Battery type | Grade A LifePO4 battery |
| Battery life | >5 years |
| Continuous working in rainy days | ≥15 days |
| Average Power Consumption | ≤0.3W |
| Working Mode | Steady-burning |
| Intensity | ≥10CD |
| Emitted color | Optional white,blue,yellow, red , yellow/white, red/white |
| Light Source Service Life | ≥20 years |
| Overall Size | 186mm×186mm×245mm |
| Installation Size | ￠145mm×M10 |
| IP Protection | IP67 |
| Ambient Temperature | -50℃～70℃ |
| Weight | 1.8KG |
| Humidity | ＜95% |
| Altitude | ＜4500M |
| Standard | Comply toICAO Annex 14,FAA AC 150/5345-46B |
About us
Dongguan Xinan Technology Co.,Ltd. is a high technology enterprise engaging in research, production, sales and after sale services for a wide range of Aviation Obstruction Light, LED Warning Light, Heliport Light, LED Marine Lanterns, Solar Garden/Street Light. We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in domestic and overseas market in many fields,eg.Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc.
All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). we are proud to have served customers from all across the world.
