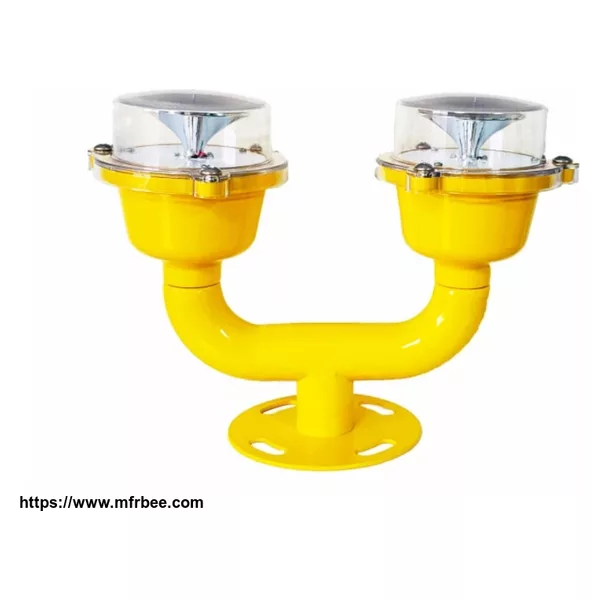

Newest! Double Light Low Intensity Led Aviation obstruction light
Product Quick Detail
- FOB Price
- USD $109.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- 1pcs/carton
- Delivery
- 15 Days
Specifications
GS-LI/D Low-intensity Double Aviation Obstruction light, Baseadopts metal stoving varnish.
Light source adopt with independent research and development dedicated LED chip, which have the specific ofhigh light intensity ,low power consumption and longservicelife.
Lampshade adopt with PC material, it can resist corrosion, anti-UV, anti-shock; management circuit with Strong lightning protection and With the surge protection device, which can adopt to extremely bad working environment.
This lamp with photoswich, it can turn on when light intensity less than 50LUX, and turn off when above 50Lux.
| Name | Parameter |
| FAA Classify | L-810 |
| Model | GS-LI/D |
| Power voltage | Optional : AC220V, AC120V, DC24V, DC48V |
| Power Supply Frequency | 50HZ～60HZ |
| Power Consumption | ≤3Wx2 |
| Working mode | Optional: steady burning,flashing,steady burning backup,flash alternately |
| Light Intensity | Type B≥32.5cd Type A≥10cd |
| Horizontal Out-put | 360° |
| Vertical Divergence | 10° |
| Optional Emitting Light Colors | Red |
| Service Life of the Light Source | ≥20years |
| Overall Size(mm) | 143x143x125(mm) |
| Installation size | 3/4inches screw installation or chassis installation |
| IP Protection | IP65 |
| Optically Controlled Ambient Brightness | 50/100Lux |
| Ambient Temperature | -40℃～70℃ |
| Weight | 0.6KG |
| Anti Wind Ability | 120m/s |
Dongguan Xinan Technology Co.,Ltd. is a high technology enterprise engaging in research, production, sales and after sale services for a wide range of Aviation Obstruction Light, LED Warning Light, Heliport Light, LED Marine Lanterns, Solar Garden/Street Light. We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in domestic and overseas market in many fields,eg.Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc.
All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). we are proud to have served customers from all across the world.
