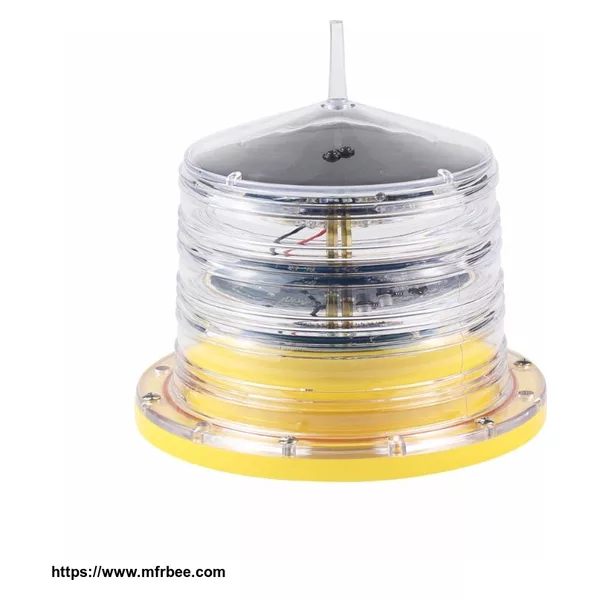

Low Intensity Solar aviation obstruction light flashing/ constant

GS-LS/G low intensity solar powered obstruction light adopts insert solar panel, whose photoelectric conversion efficiency is high to 19%integrated design, cooperate with solar dedicated lithium iron phosphate battery as power supply.

Control circuit adopts micro-power consumption single chip microcomputer control chip,whichcan more precise control the battery’s charge and discharge statue.

Meanwhile, it canreduce controlling circuit ’s power consumption.

Light source adopts special customized LED chip, which hasthespecific of highlight intensity, low power consumption, longservicelife and so on. Lampshade adopts PC material, which can corrosion resistance, anti-UV anti-shock. The base adopts marine-grade dedicated plastic material,it can apply to seaways,bridge and chemical plant that have hostile and strong corrosive environment.

Name	Parameter	Name	Parameter
Type	GS-LS/G	Light Source Life	＞100000 hours
Power Provider	Mono-crystalline silicon solar panel	Optional Emitting Light Colors	Red
Battery Capacity	3.2V3.3AH	Battery Type	Replaceable lithium iron phosphate battery
Battery lifespan	＞5years	Solar panel voltage	5.5V
Solar panelPower Consumption	2W	Solar panel lifespan	＞20years
Power Consumption	≤2W	Vertical Divergence	＞10°
VisualDistance	5km	Horizontal Out-put	360°
FAA Classify	L810	Overall Size(mm)	186mm(D)x190mm(H)
Light Source	LED	Installation Size(mm)	D170mmxM6
Working temperature	-40℃~70℃	Wind-speed Ability	80m/s
Storage temperature	-40℃～70℃	Working mode	Flashing(20times/min)
Sun Switch Illumination Threshold	300LUX±100LUX	Steady Burning Intensity	32.5cd
Continuous Burning Timein rainy days	＞15 days (12 hours/day)	Flashing Intensity	32.5cd
Weight	1.2kg	IP Protection	IP67

About us
Dongguan Xinan Technology Co.,Ltd. is a high technology enterprise engaging in research, production, sales and after sale services for a wide range of Aviation Obstruction Light, LED Warning Light, Heliport Light, LED Marine Lanterns, Solar Garden/Street Light. We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in domestic and overseas market in many fields,eg.Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc.

All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). we are proud to have served customers from all across the world.
