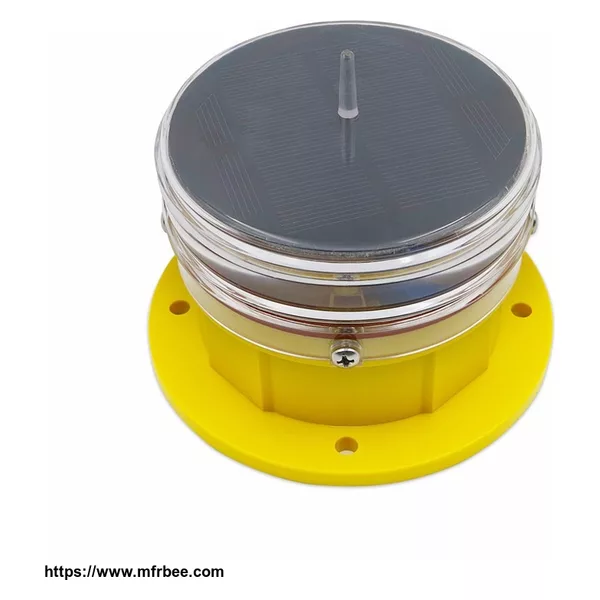

GS-LS/C LED Marine lantern adopts integrated design with insert solar panel whose photoelectric conversion efficiency is up to 25%, cooperated with solar dedicated battery as power supply.
Control circuit adopts micro-powerMCU control chip,whichcan more precise control battery charge and discharge state; Meanwhile, it canreduce controlling circuit ’s power consumption;
Light source adoptsspecial custom LED chip, which has specific of highlight intensity, low power consumption, longservicelife and so on.
Lampshademolded with anti-UV PC material, which can corrosion resistance, anti-UV anti-shock. The base adopts marine-grade dedicated material, suitable for harsh and strong corrosive environments such as sea lane.
Optional with magnetic mounting installation.
Name | Parameter | Name | Parameter |
Type | GS-LS/C | Light Source Life | >100000 hours |
Power Provider | Mono-crystalline silicon solar panel | Optional Emitting Light Colors | Red, Amber Yellow, Green, Blue, White |
Battery Capacity | 3.2V 2000mA | Battery Type | Lithium battery |
Solar panelPower Consumption | 1.2W | Solar panel lifespan | >30years |
Power Consumption | ≤0.1W | Vertical Divergence | >8° |
Visual Range | 1~3 NM | Horizontal Out-put | 360° |
Light Source | LED | Overall Size(mm) | 118mm(D)x95mm(H) |
Working temperature | -50℃~85℃ | Installation Size(mm) | D100mmxM6 |
Storage temperature | -55℃~85℃ | Wind-speed Ability | 80m/s |
Weight | 0.3kg | Working mode | Flashing(40tims/min) |
Continuous Burning Timein rainy days |
>15 days
(12 hours a day) |
Flashing Intensity | According with IALA |
