Weighing and Packaging Scales
Single scale

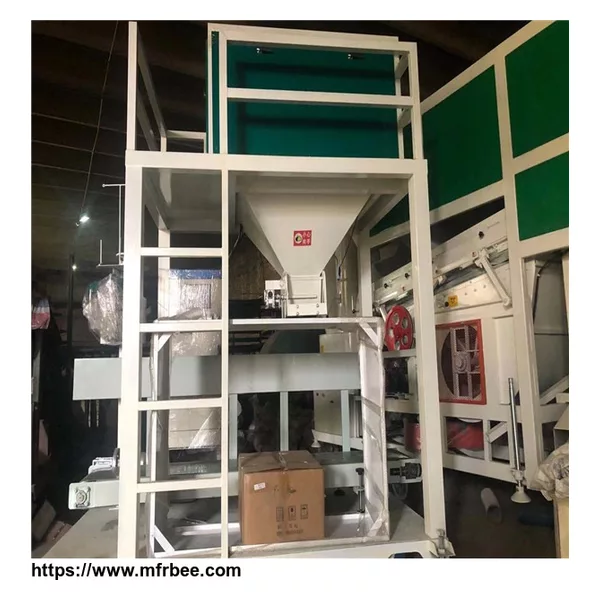

DLB type Weighing and packaging scales is a new generation of automatic packaging machines developed by our company. It is mainly composed of four parts: automatic weighing device, conveying device, packaging device, and computer control. Fast weighing, high measurement accuracy, occupy a small area, and easy operation.
Double scale
It adopts the dual-scale system, adjusts the dosage system, which can be used alternately or synchronously with high working efficiency.
Features
1. Independent hanging weighing sensor, stable information transmission and high weighing accuracy.
2. Adopting advanced frequency conversion technology, fast response speed, strong anti-interference ability, smooth movement, and automatic error compensation and correction functions.
3. Infrared sensor with fast pneumatic actuator, fast response.
4. The LCD touch screen displays the operation interface, and the parameter modification is convenient and flexible.
5. The host computer, conveyor belt, sewing machine, and controller are networked. The humanized operation design greatly reduces the labor intensity.
6. Group productivity, daily productivity and the cumulative amount of packaging will be saved automatically.
Technical Parameters | ||||||||
Name | Name | Model | Power (kw) |
Packing capacity/h |
Weighing Scope/kg |
Error rate | Scale value |
Size L×W×H (mm) |
Weighing and packaging scales | Single scale | DLB-50A | 1 | ≧300 | 5-50 | 0.1%FS | 20g | 3000×1500×300 |
DLB-100A | 0.74 | ≧300 | 10-100 | 0.1%FS | 20g | 2750×900×3550 | ||
Double scale | DLB-100S | 0.74 | ≧300 | 20-100 | 0.1%FS | 20g | 3000×1000×389 |
Application It is suitable for weighing sugar,salt,seeds,rice,sesame,milk powder,coffee,seasoning powder and other small granules and powder material. Features 1.Fully automatic finishing whole process of feeding,weighing,filling bag,date printing,finished product output. 2.High ...
Fetures 1.Fully automatic finishing whole process of feeding, weighing, filling bag, date printing,finished product output. 2.High accuracy and high speed. 3.Applicable to a wide range of materials. 4.Applicable to the customer who without special requirements of packaging and ...
Model SPPP-50HW Automatic Powder Packaging machine (With weighing feedback) Main Technical Data Dosing mode Auger Filler Bag Sizes L:50-300mm W 80-240mm Packaging Speed 25-70 bags/min Packaging Accuracy 100-500g, ≤±1%; >500g, ≤±0.5% Power Supply 3P AC208-415V 50/60Hz ...
Scope of application This packing system is suitable for the automatic weighing and package of granule material such as seeds, beans, nuts, salt, sugar, rice, almonds, etc. It is also suitable for the package of fried fruits, vegetables and snack food such as fruit chips, ...
Type:Bench Scale Place of Origin:United Arab Emirates Weighing scales, barcode printers, EAS systems, tags labels Packaging machinery ...
100gram to 500gram 2. 500gram to 1,000gram (If over 1,000g, special required can be designed) ...
Package:Wooden Weighing Indicator By:AND (Japan) Power:220V/380V 50/60HZ Bag Type:PP,PE..etc... Weighing By:3 Step Free Falling Accuracy:1/1000 Weighing Speed:380~400pack/hour Weighing Range:50g~15kg/pack Type:General Automatic Grade:Semiautomatic Usage:Outer Packaging:Plastic ...
Type:General Automatic Grade:Automatic Usage:Outer Packaging:Plastic Processing:Packaging Line Model Number:JS-10A Brand Name:JS Place of Origin:Taiwan JS-26 Electronic Weighing and Packaging Machine + input conveyor & Storage Tank ...
