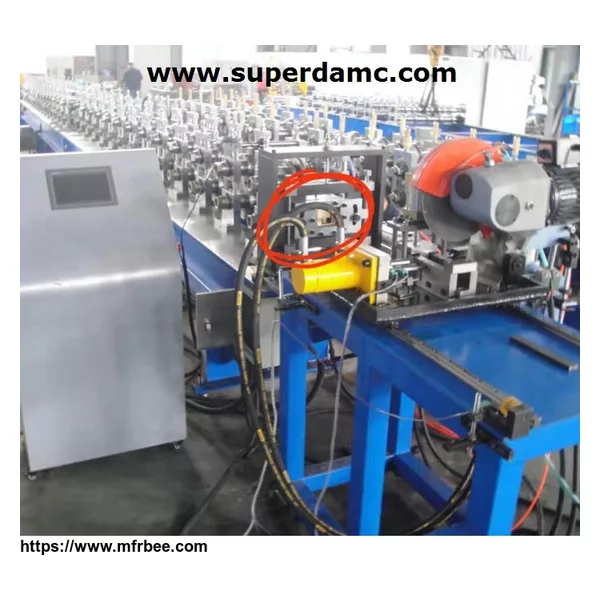

Design Roll forming machine for making electrical cabinet 9 Fold Profiles
Automaitc electric factory using cabinet frame roll forming machine for electric cabinet 9 fold rack, electronic box pole, metal case frame which using in switchgear system, server case, low voltage panel building, control cabinet electrical instruments etc.
|1||MATERIAL||Type||Cold-rolled strip steel, galvanized sheet|| |
|Yield Strength (Mpa)||Q235|| |
|2||Forming product Width||43.5mm|| |
|3||Forming speed (m/min)||2-6m||Including welding|
|4||Forming main power (KW)||11 KW*2 pcs||FYR|
|5||Hydraulic power (KW)||18.5 KW||FYR|
Electronic control panel 9 bend frame production line process
2 in 1 Uncoiler Straightening→servo feeder→punch → Guide device → roll forming machine → Roller welding →shear device (including knife)→ finished product rack
Design roll forming machine for sale
Machinery main components of the brand:
PLC control system: Siemens
Inverter: Taiwan Shilin
Touch screen: Siemens
Some components are Schneider brand devices.
