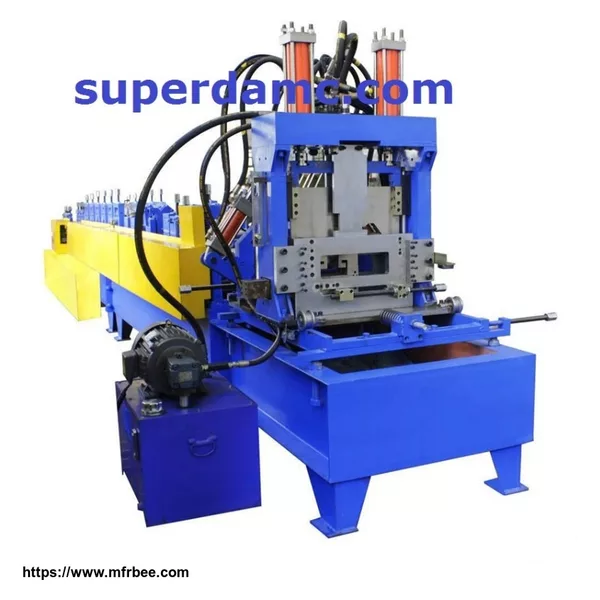

Superda Interchangeable C Z Purlin Roll Forming Machine
Metal c z prulin widely using in construction, electric, furniture, logistic, supermarket...
1,C Z purlin machine technical parameters
No. | ITEM | PARAMETER | |
1 | MATERIAL | Type | Cold-rolled strip steel, galvanized sheet |
T.(mm) | 0.8-1.5mm | ||
Yield Strength (Mpa) | Q235 | ||
2 | Forming product Width | 50-300mm | |
3 | Forming speed (m/min) | 5-8m | |
4 | Forming main power (KW) | 11 KW*2 pcs | |
5 | Hydraulic power (KW) | 18.5 KW | |
6 | Voltage | AC380V,50Hz,3P |
Chaneable c z purlin production line process
2 in 1 Uncoiler Straightening→servo feeder→punch → Guide device → roll forming machine →shear device (including knife)→ finished product rack
Electrical control system
The entire line imported PLC control, LCD touch screen, man-machine interface. People interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication. Workpiece length digital setting, adjustable length can be adjustable as well. Real-time monitoring of equipment operating status and fault indication.
Operation manual / automatic two styles. With manual and automatic switching function: In the manual mode, can be stand-alone operation, easy maintenance; In automatic mode, carry out full production run, in order to start; across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operating personnel Safety.
Machinery main components of the brand:
PLC control system: Siemens
Inverter: Taiwan Shilin
Encoder: Omron
Touch screen: Siemens
Some components are Schneider brand devices.
