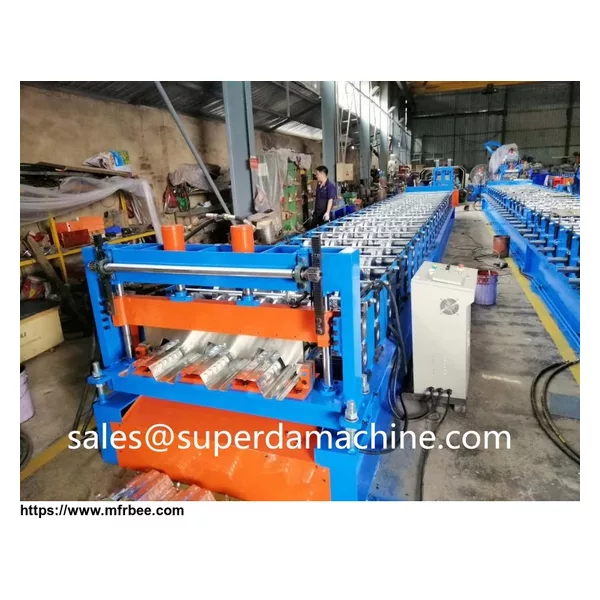

Floor deck roll forming machine

FOB Price
USD $26,900.00 / Piece
Place Of Origin
China
Minimum Order
1
Packaging
Container
Delivery
45 Days

Galvanized Steel Sheet Floor Decking Panel Roll Forming Machine


Roll forming machine for production floor deck & building material.


Metal Forming machine for steel floor deck technology detail

1,Technical parameters (Item:YX75-310-914.5)


No. ITEM PARAMETER REMARK
1 MATERIAL Type Cold-rolled strip steel, galvanized sheet
T.(mm) 0.6-1.8mm
Yield Strength (Mpa) Q235
2 Forming product Width 310-914.5mm
3 Forming speed (m/min) 2-8m Including hole
4 (KW) 18 KW FYR
5 Hydraulic power (KW) 18.5 KW FYR
6 Collect Rack 6m FYR
7 Voltage AC380V,50Hz,3P Customized


Floor Deck line process

Uncoiler →Guide device → roll forming machine →shear device (including knife)→ finished product rack




Devices completed floor deck prodution line


No. Machine name QTY REMARK
1 Uncoiler straightener 1
2 Guide device 1
3 Forming machine 1
4 Follow Shear 1 Including knife
5 Collect rack 1
6 Control system 1


Floor deck machine accessories brand

No. Name manufacturer
1 Motor & Reducer Domestic brands
2 The main key bearing Domestic brands
3 Inverter Shilin
4 PLC Systems Siemens
5 Low-voltage electrical Schneider
6 Encoder Omron
7 touch screen Siemens
8 Hydraulic system Domestic brands
