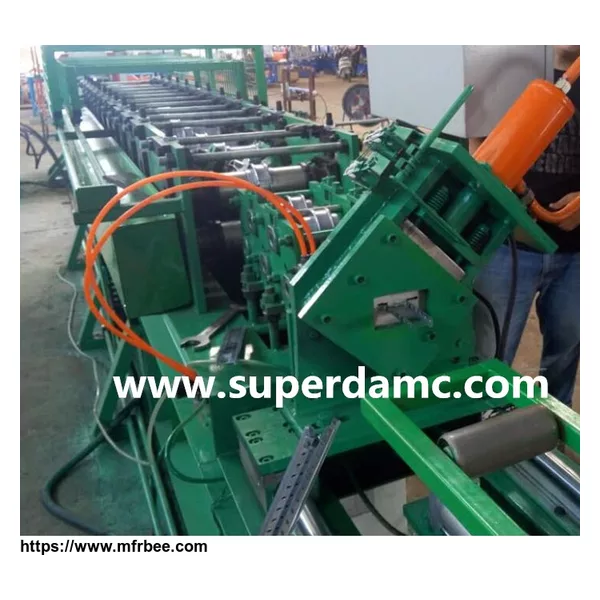

Stud roll forming machine
Product Quick Detail
- FOB Price
- USD $25,006.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- Container
- Delivery
- 55 Days
Specifications
China steel stud and track profile machine & stud roll forming machine manufacturer
Profile stud roll former forming metal parts widely using in electronic, solar, construction, furniture etc.
Stud roll forming machine production line process
Uncoiler straightener 2 in 1 → Guide device → roll forming machine →shear device (including knife)→ finished product rack
Devices completed stud metal parts production line
| No. | Machine name | QTY | REMARK |
| 1 | Uncoiler straightener | 1 | |
| 2 | Servo Feeder | 1 | |
| 4 | Guide device | 1 | |
| 5 | Forming machine | 1 | |
| 7 | Follow Shear | 1 | Including knife |
| 8 | Collect rack | 1 | |
| 9 | Control system | 1 | |
Stud forming machine accessories brand
| No. | Name | manufacturer |
| 1 | Motor & Reducer | Domestic brands |
| 2 | The main key bearing | Domestic brands |
| 3 | Inverter | Shilin |
| 4 | PLC Systems | Siemens |
| 5 | Low-voltage electrical | Schneider |
| 6 | Encoder | Omron |
| 7 | touch screen | Siemens |
| 8 | Hydraulic system | Domestic brands |
- Country: China (Mainland)
- Business Type: Fire hose reel cabinet roll forming machine, Distribution box roll forming machine, filter frame roll forming machine, oval tube forming machine, square tube roll forming machine, triangular tube machine, electronic cabinet roll forming machine
- Market:Asia,European Union
- Founded Year:2009
- Address:No.95, Ainan Rd, Longdong district, Longgang area
- Contact:Demi Wu
