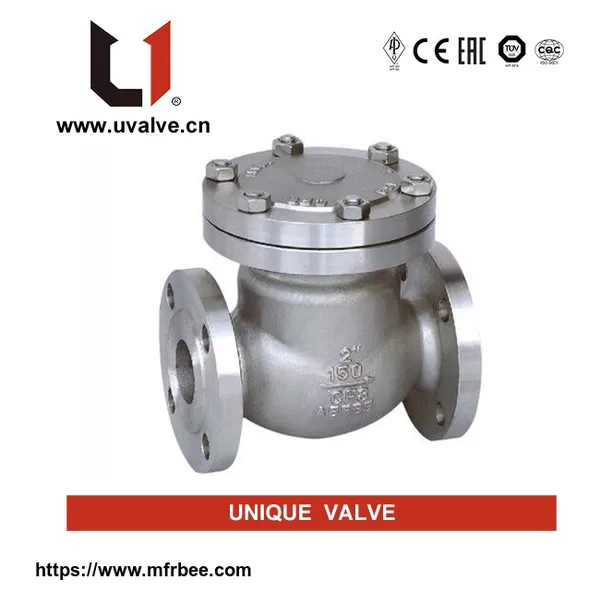

Stainless Steel Check Valve
Product sourcing details
- FOB Price
- USD $20.00 / Piece
- Minimum Order
- 2
- Place Of Origin
- China
- Packaging
- standard carton
- Delivery
- 30 Days
Specifications
Specifications:
Nominal diameter: 1/2 Inch-48 Inch (DN15-DN1200).
Pressure range: Class 150-2500 LB (PN16-PN420).
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel.
Trim (Disc, Stem): Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel.
End Connection: RF, RTJ, BW.
Working temperature: -196℃ - +560℃.
Suitable Medium: Water, Steam, Oil and natural gas, etc. (Different raw material for different medium) Cryogenic, soft seat insert design is available for tight shut off where required.
Design and Manufacture: BS 1868, ASME B16.34, API 6D.
Inspection and Test: API 598, API 600 or API 6D, DIN 3230.
End Flange Dimension: DIN 2543-2545, DIN 2501, ASME B16.5 (for NPS≤24, ASME B16.47 series B, API 605, ASME B16.47 A Series, MSS SP-44 (for NPS>24).
BW end Dimension: ASME B16.25.
https://www.uvalve.cn
Nominal diameter: 1/2 Inch-48 Inch (DN15-DN1200).
Pressure range: Class 150-2500 LB (PN16-PN420).
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel.
Trim (Disc, Stem): Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel.
End Connection: RF, RTJ, BW.
Working temperature: -196℃ - +560℃.
Suitable Medium: Water, Steam, Oil and natural gas, etc. (Different raw material for different medium) Cryogenic, soft seat insert design is available for tight shut off where required.
Design and Manufacture: BS 1868, ASME B16.34, API 6D.
Inspection and Test: API 598, API 600 or API 6D, DIN 3230.
End Flange Dimension: DIN 2543-2545, DIN 2501, ASME B16.5 (for NPS≤24, ASME B16.47 series B, API 605, ASME B16.47 A Series, MSS SP-44 (for NPS>24).
BW end Dimension: ASME B16.25.
https://www.uvalve.cn
