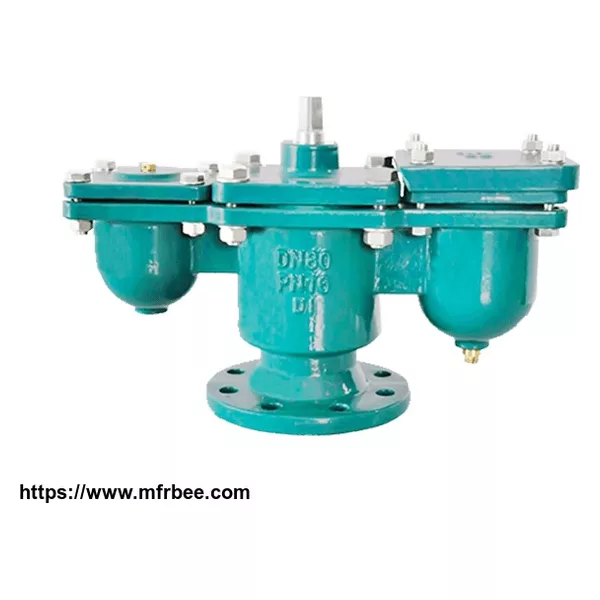

Basic information ofDouble Orifice Air Release Valve
This valve is a pipeline will be matched equipment, apply to the temperature does not exceed 100 ℃ water, hot water pipe on the pipe from the air.
Features of Double Orifice Air Release Valve
1. Body is provided with a shock-proof inner tube to protect the float;
2. Lower water pressure can be closed to prevent drainage;
3. When there is negative pressure, the piston quickly opens to breat
4. Stainless steel floating ball, long life.
Principle of Double Orifice Air Release Valve
This valve exhaust, buoy, by gravity pull down one end of the lever, the lever in the tilt state at this moment, in the leverage and vent contact appeared gap, air through the vent through the gap, with the air discharge, water level rise, buoy under the effect of the buoyancy of water float upwards, the lever on the seal face pressure on the porosity, gradually until the vent is completely blocked. The exhaust valve is now completely closed.
Installation and Commissioning of Double Orifice Air Release Valve
When installing the double orifice air release valve , always install acontrol valve
Product scope, Standards & Materials of Double Orifice Air Release Valve
Size Range: 2"~12"
Pressure Rating: 10bar ~ 25bar
Face to Face Dimensions: AMSE B16.10, EN558-1
Flange End Dimension: AMSE B16.1/16.42, AS4087, EN1092-2
Coating: Fusion Bonded Epoxy Coating
Inspection and Test: ISO 5208 / EN 12226-2
ZECOChina control valve
