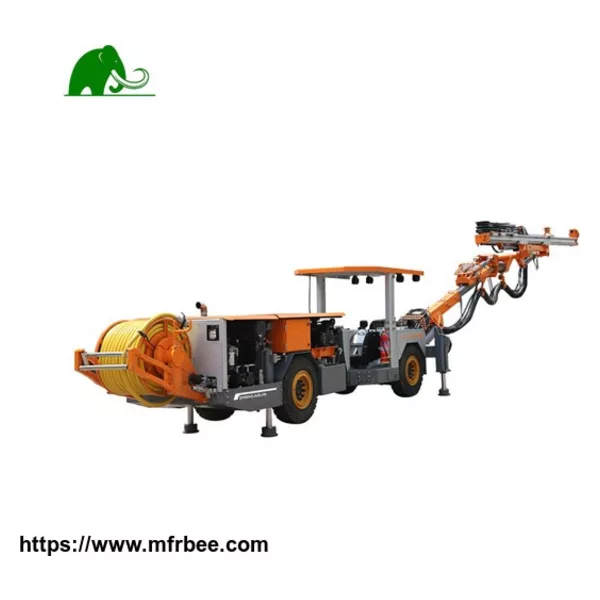

ABT mine hydraulic tunneling rig is compact in structure, small in shape, energy saving, low in noise, multi-function and high in efficiency. It realizes mechanized operation of rock roadway tunneling and can greatly improve the tunneling speed.
The drilling rig is suitable for tunneling of underground tunnels and culverts in metal mines, hydropower and other fields. All trolleys are equipped with full hydraulic drilling system, advanced power system and anti-sticking brazing device.
The trolley has flexible motor, small turning radius and strong climbing ability, which can greatly improve working environment, construction efficiency and construction quality. At present, there are single-arm trolley, multi-arm trolley and mining trolley.
UJ18 Jumbo mining machine
UJ18 Tunneling trolley, hydraulic drilling rig ,is suitable for narrow, low-rise mine and tunnel. Using direct control of the hydraulic system, four-wheel drive articulated floating chassis. It can be applied to rugged road conditions, quick approach and evacuation of construction section, high-efficiency rock drill performance, shorten drilling time, and reduce consumption, is the only choice for all narrow veins, low-rise roadways.
UJ19 Drilling Jumbo
UJ19 heading trolley is a special drilling rig for small roadway rock drilling. It can be used for horizontal blasting drill as well as bolt and other special applications. It is equipped with high-efficiency hydraulic high-frequency rock drill ZY103 with a maximum power of 15kW. The unique double buffer mechanism can effectively absorb backlash energy and ensure the life of the drill. The dynamic parallel positioning function ensures the parallelism between the drill holes, which is a sharp tool to replace artificial drilling.
UJ21 Drilling Jumbo
UJ21 tunneling trolley is widely used in underground mine development, small tunnelling, bolt hole and other reinforcement projects. The well-designed UJ21 will provide customers with better perforation experience in terms of appearance, configuration and system control. Its chassis and lifting safety roof based on safety considerations ensure the passing and stability of the equipment, so that operators can always be in a safe position to work; "direct" positioning of the drilling arm system to achieve rapid and accurate drilling positioning; equipped with a ZY104M rock drill power up to 18 kW, its 60 Hz frequency is high-efficiency rock drilling. Favorable protection. The double buffering mechanism shock absorption system and the automatic adapting system of drilling rig can improve the penetration efficiency while effectively reducing the consumption of drilling tools and improving the production efficiency.
UJ33 Drilling Jumbo
UP45 Drilling Jumbo
ABTdrilling equipment supplier
