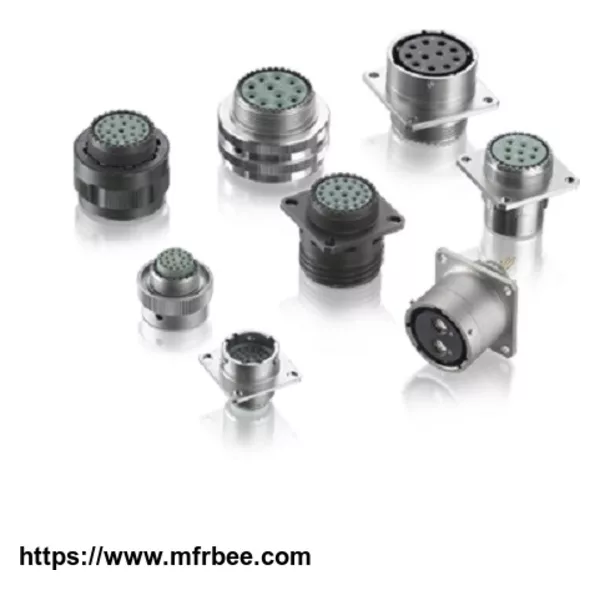

Sunkye MIL DTL 38999 iii Connector
Product Quick Detail
- Place Of Origin
- HongKong
- Packaging
- N/A
- Delivery
- 4-6weeks
Specifications
Quick lock thread with anti-loosening mechanism
100% Scoop- -proof to ensure no damage to the contacts in a blind mating application
With grounding reeds to strengthen emi/rfi shielding
Excellent performance of shock & vibration resistance
Good performance of fluid resistance
Widely used in aerospace, aviation & military system, especially for high impact vibration environment
Mil 38999 connector
Material of Sunkye MIL-DTL-38999-iii Connector
Shell: aluminum alloy, stainless steel, titanium alloy
Finish: olive drab cadmium (W), chemical nickel plating (F), stainless steel passivation (K), stainless steel nickel plating (S), titanium alloy electroless (TT)
Insulation Mounting Plate : thermoplast
Seal Ring: silicon rubber elastomer
Contact: copper alloy
Finish: nickel plated with gold
Mechanical Performance of Sunkye MIL-DTL-38999-iii Connector
Sinusoidal Vibration : 10-50Hz, speed 254mm/s
50-140Hz, double -amplitude 1.5mm
140-2000Hz, acceleration 588m/s²
Random Vibration : high temperature 96(m/s²)²/ Hz 408m/s²,100~1000Hz
Random Vibration : environment temperature480(m/s²)²/ Hz,100~300Hz
Shock : 2940m/s² 3ms
Durability : 500 mating cycles
Contact Retentivity (Min.):
#22D : 44N
#20 : 67N
#16 : 111N
#12 : 111N
#8 coaxial : 111N
#8 triax : 111N
Mil-DTL-38999 Series III connector is a high-performance cylindrical connector that is designed for both general purpose and harsh environment applications. It adopts an enhanced "one turn" coupling system and self-locking screw thread to improve the durability of the coupling system, while the thicker wall and larger coupling surface area increase the strength and impact resistance. 38999 Series III connector can also be used for various shell materials and finishes (anode, zinc cobalt, aluminum, electroless nickel plating, olive cadmium, etc.).
For more information about MIL-DTL-38999 Series III connectors, click the "PDF Download" button above to see the details in the PDF file. If you have any difficulty searching for products, please contact us and Sunkyeis one of the prefessional38999 connector manufacturers
