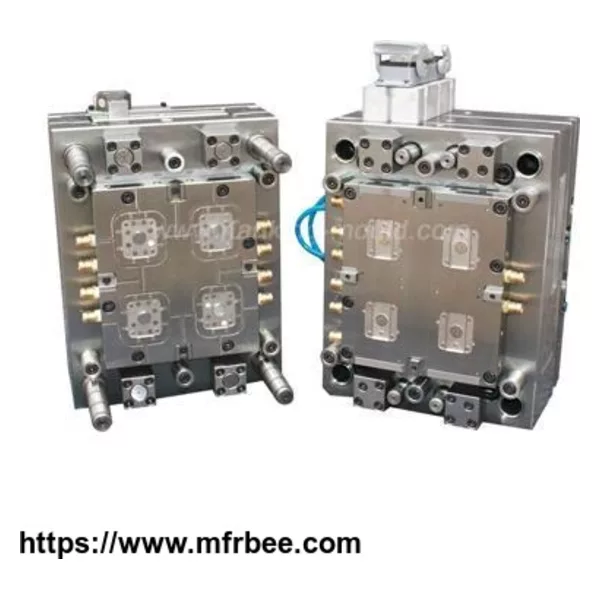

Multi Cavity Mould
Product Quick Detail
- FOB Price
- USD $5,000.00 / Piece
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- PALLET
- Delivery
- 15 Days
Specifications
24 Cavities Plastic Injection Mold
Product Name: 24 Cavities Plastic Injection MoldMold Base: LKM, HASCO, DME, etc.Mold Steel: NAK80, ASSAB8407, S136, 718H, 738H, etc. Tolerance: +/-0.002mmFinish: Polish, Silk Screen, Painting, etc.
4 Cavities Mould
Plastic Injection Mould standard: DME, HASCO, Meusburger, China LKM Standard etc.Plastic Injection Mold Steel: ASSAB8407/P20/738/2083/2343ESR/NAK80/S136 etc. Mould Base: LKM Mould Base or others.
8 Cavities Mould
8 Cavities Plastic Injection Mold to produce plastic ear tag,High volume production mould.Mould Name： Animal Tag MouldPart Material：PPS Product Size： φ15.6Product Description: Animal Plastic TagMould Cavity: 8+8...
8 Cavities Mold
8 Cavities Plastic Injection Mold to produce plastic ear tag, high volume production mould.Mould Name： Animal Tag MouldPart Material：PPS Product Size： φ15.6Product Description: Animal Plastic TagMould Cavity...
8 Cavities Injection Mold
8 Cavities Plastic Injection Mold to produce plastic ear tag,High volume production mould.Mould Name： Animal Tag MouldPart Material：PPSProduct Size： φ15.6Product Description: Animal Plastic TagMould Cavity: 8+8 ...
16 Cavities Mould
16 Cavities Plastic Injection Mold, very high precision plastic mould, important to control the dimension of each cavity insert, the insert is interchangeable.
48 cavities mould
Mould Name： 48 Cavities MouldPart Material： PP AV161Product Size： 173.30*34.80*22.87MMProduct Description: C8 RI IBM FORKMould Cavity: 48 CavitiesMould Size: 1000*1400*900 MMSuitable Injection Machine...
A multi-cavity mould can be understood, obviously referring to mold with multiple cavities. The multi-cavity mold comprises a multi-cavity of the same plastic part and a multi-cavity of different plastic parts. The use of multi-cavity molds for injection molding of plastic products can increase production efficiency and reduce costs, so the multi-cavity molds are becoming more popular.
Since themulti cavity mould
In order to ensure the uniformity and performance of the quality and performance of each cavity, the flow balance of the gating system during the injection process is very critical, so that the plastic melt can be filled the cavity with the same pressure and temperature at the same time. Therefore, filling balance is the most important factor to consider when designing a multi cavity mould.
The arrangement of the cavity and the runner is divided into two categories: balanced and unbalanced.
The feature of balance type is the length, shape and section dimension of the runner from the sprue to each cavity are correspondingly the same, it can realize even feeding of all cavities and fill the cavity at the same time. However, the unbalanced feature is that the lengths of the runners from the sprue to the cavity gates are not equal, which is not conducive to balanced feeding, but the unbalanced arrangement can significantly shorten the overall flow of the melt in the gating system. The compact mechanism reduces heat loss and injection pressure loss during flow and shortens the mold filling time.
