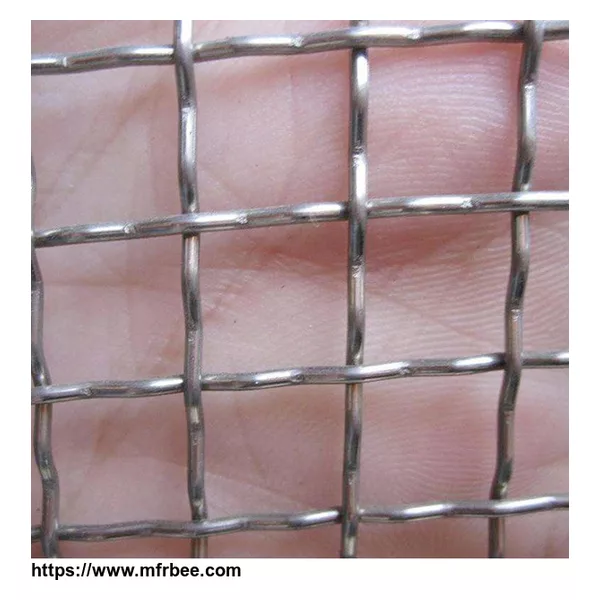

Stainless Steel Square Woven Mesh
Stainless Steel Square Woven Mesh, in either woven or welded construction, uses include screen enclosures, railing infill panels, fan guards, filtration systems, and many other applications
We could produce versatile, easily adaptable product in various opening and mesh sizes, thicknesses, and primary materials to satisfy a wide range of uses and custom design ideas.
Stainless Steel Square Woven Mesh mainly includes regular Plain /Twill Weave Mesh; ranged from 1mesh to 635mesh; "Tensile Bolt" Bolting Cloth; Crimped Mesh and Welded Mesh.
Regular Plain /Twill Weave Mesh and "Tensile Bolt" Bolting Cloth are normally for industrial applications.
All the Square mesh quality control based on ASTM E 2016-15 Standard and raw material based on ASTM A580-14 standard.
Raw material Grade: 304, 304L, 316, 316L, 430, etc.
General uses in different applications:
· Particle separation and filtering
· Particulate sifting
· Safety and equipment protection.
Detailed Specifications:
Square Hole Stainless Steel Wire Mesh | ||||
Mesh count | SWG | Aperture | Effective section area | Weight |
(Gauge) | (μm) | (%) | (kg/㎡) | |
20 | 32 | 1000 | 62 | 0.73 |
24 | 29 | 720 | 46.07 | 1.39 |
30 | 35 | 640 | 56.55 | 0.66 |
40 | 35 | 430 | 44.8 | 0.88 |
50 | 37 | 250 | 35.81 | 0.87 |
60 | 36 | 234 | 30.38 | 1.08 |
70 | 38 | 320 | 34.41 | 0.79 |
80 | 40 | 200 | 38.69 | 0.58 |
100 | 42 | 150 | 36.76 | 0.5 |
120 | 46 | 149 | 51.34 | 0.22 |
140 | 46 | 120 | 44.8 | 0.25 |
150 | 45 | 100 | 34.41 | 0.37 |
180 | 46 | 80 | 33.04 | 0.32 |
200 | 46 | 74 | 31.06 | 0.31 |
250 | 48 | 60 | 36.76 | 0.2 |
300 | 48 | 40 | 27.83 | 0.24 |
325 | 48 | 40 | 23.83 | 0.26 |
350 | 49 | 37 | 26.8 | 0.21 |
400 | 49 | 30 | 27.83 | 0.18 |
450 | 49.5 | 28 | 25.4 | 0.18 |
500 | 49.5 | 30 | 25.79 | 0.16 |
550 | 49.5 | 26 | 32.14 | 0.11 |
600 | 49.7 | 25 | 42.71 | 0.085 |
635 | 49.9 | 25 | 42.71 | 0.07 |
