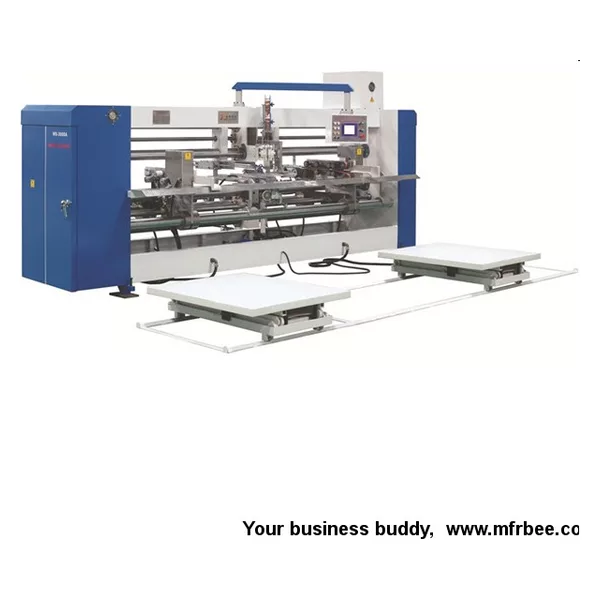

DXS-300 Double head carton stitching machine
Product Quick Detail
- Place Of Origin
- china
- Packaging
- standard export packaging
- Delivery
- 15 Days
Specifications
DXS-300 Double head carton stitching machine introduction
This machine can stitch single, double, and irregular carton. Adopt electric control to adjust size, fault instruction will appear in the LCD. Single , double and strengthen nail are available, be finished one time.
Features
Automatic counter ejector
Set the program in computer adjust stitching pitch automatically
Applied to the three-layer or five-layer cardboard boxes as well as the uncovered ones with bottom. As for the seven-layer boxes, the equipment needs to be customized.
DXS-300 Double head carton stitching machine parameter
| Model | DXS-2400 | DXS-2700 | DXS-3000 |
| Max corrugated paperboard (A+B)*2(mm) | 4800 | 5400 | 6000 |
| Min corrugated paperboard (A+B)*2(mm) | 1060 | 1060 | 1060 |
| Max paperboard length(mm) | 2250 | 2550 | 2850 |
| Min paperboard length(mm) | 350 | 350 | 350 |
| Max paperboard width (mm) | 1200 | 1350 | 1500 |
| Min paperboard width(mm) | 180 | 180 | 180 |
| Min paperboard height (C+D+C) (mm) | 400 | 400 | 400 |
| Machine Length(mm) | 6000 | 6000 | 6000 |
| Machine width(mm) | 3550 | 3850 | 4150 |
| Machine Weight(kg) | 4000 | 1200 | 1200 |
