R1800F Rotary arm R1800F Rotary arm stretch wrap machine
Product Quick Detail
- Place Of Origin
- china
- Packaging
- standard export packaging
- Delivery
- 15 Days
Specifications
stretch wrap machine,pallet stretch wrapping machine,pallet stretch wrapper
R1800F Rotary arm R1800F Rotary arm stretch wrap machine
machine

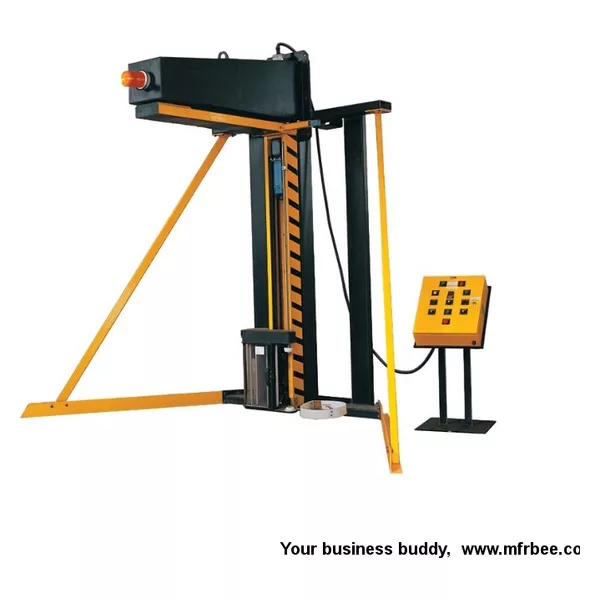

R1800F Rotary arm stretch wrap machine introduction
R1800F Rotary arm stretch wrapping machine
1.Max wrap size:1.3m*1.2m*1.8m
2.Wrap efficiency:20-40 Pallets/Hour
Rotary arm stretch wrapper is a machine that arm rotates around the load without cut & clamp unit, specially designed for unstable or very high loads and extremely heavy loads because the pallet can be placed on the floor under the wrappers.This machine keeps the load to be wrapped stationary while the stretch film carriage rotates around the load to apply the stretch film.
R1800F Rotary arm stretch wrap machine parameter
| Model | R1800F |
| Wrap size(L×W) | (500-1300)mm×(500-1200)mm |
| Wrap height(max) | 1800mm |
| Wrap efficiency | 20-40 Pallets/Hour |
| Rotary speed | 0-15rpm Adjustable by invertor |
| Film carriage | Power pre-Stretch system up to 250% with adjustbale speed |
| Lift system | Lift speed adjustable |
| Control system | PLC control,wrap layers adjustable,photo-eyes auto sense height |
| Safety system | Grid guard and strike-proof protect system |
| Machine size (L×W×H) | 4300mm×2000mm×3500mm |
| Power/voltage | Rotary arm: 0.75kw film carriage: 0.37kw lift system: 0.37kw/AC380V |
