Guarantee of Quality

Superda guarantee cabinet frame 9 bend rack roll forming line design accordance with clients required drawing, machine is brand new. Specification and performance as stipulated in drawing and operation with good smooth.

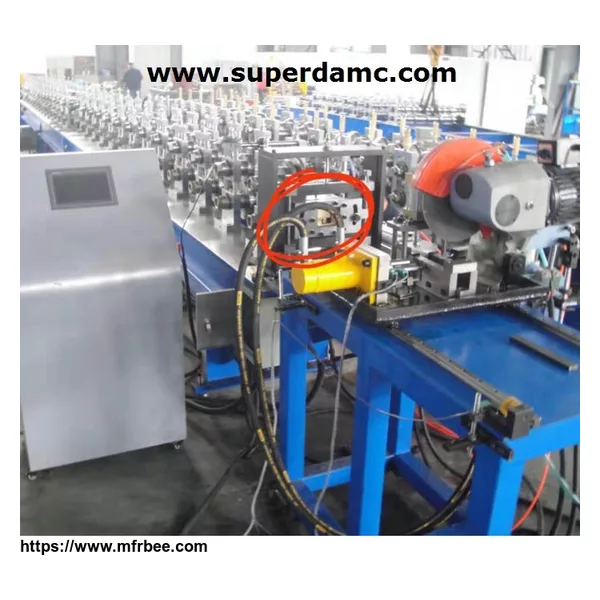

Electrica cabinet frame roll forming machine

1, Electrical frame production line for producing 9 fold cabinet frame rack.

2, PLC control system, automatically and easy handle.

3, Gcr15 roller with quench process, hardness reach HRC60-65 ℃.

4,Tracking cutting system with Cr12 Cutting blade.

Electrical Cabinet 9 Fold Profiles Roll Forming Machine

Automaitc electric factory using cabinet frame roll forming machine for electric cabinet 9 fold rack, electronic box pole, metal case frame which using in switchgear system, server case, low voltage panel building, control cabinet electrical instruments etc.

Networking cabinet nine fold machine technical parameters

No.	ITEM	PARAMETER	REMARK
1	MATERIAL	Type	Cold-rolled strip steel, galvanized sheet
T.(mm)	1.5mm
Yield Strength (Mpa)	Q235
2	Forming product Width	43.5mm
3	Forming speed (m/min)	2-6m	Including welding
4	Forming main power (KW)	*11 KW2 pcs**	FYR
5	Hydraulic power (KW)	18.5 KW	FYR
6	Voltage	AC380V，50Hz，3P

Electronic control panel 9 bend frame production line process

2 in 1 Uncoiler Straightening→servo feeder→punch → Guide device → roll forming machine → Roller welding →shear device (including knife)→ finished product rack
