Flush mount electrical enclosure roll forming machine
Product Quick Detail
- 60000
- 80000
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- Container
- Delivery
- 65 Days
Specifications

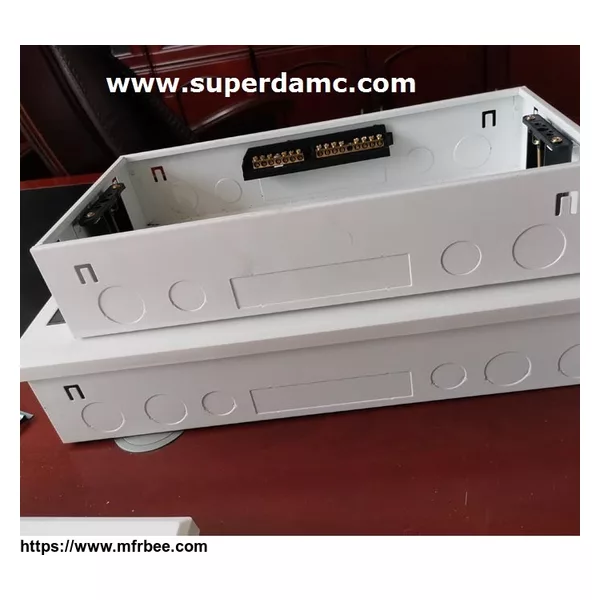

Flush mount electrical enclosure machine making dimension.
Push bottom box length is adjustable from 200-600mm, the width is 190mm, and the depth is 80mm. The actual cross-section of the product provided by the customer.
1, Flush mount net work enclosure production line technical parameters
| No. | ITEM | PARAMETER | REMARK | |
| 1 | MATERIAL | Type | Cold-rolled strip steel, galvanized sheet |
|
| T.(mm) | 0.5-0.7mm |
|
||
| Yield Strength (Mpa) | Q235 |
|
||
| 2 | Forming product Width | Customized |
|
|
| 3 | Forming speed (m/min) | 4-8m | Including hole | |
| 4 | Forming main power (KW) | 7.5 KW | FYR | |
| 5 | Hydraulic power (KW) | 18.5 KW | FYR | |
| 6 | Bending power (KW) | 3 KW | FYR | |
| 7 | Voltage | AC380V，50Hz，3P |
|
Flush mount wall enclosure production line process
Uncoiler →Straightening→servo feeder→Hydraulic press breach device → Guide device → roll forming machine → hydraulic punch →shear device (including knife)→ finished product rack
Steel flush mount enclosure roll Forming machine list
Explaination
This production line is equipment for production flush wall mount enclosure. The strip coil to be processed is manually placed on the uncoiler, and then corrected and tensioned. After leveling, it enters the hydraulic pre-punching and punching notch, and is sent to the forming machine by the guide device to form. Under the frictional damping action of the forming roller and pressure roller, after entering the shearing section at a linear speed of 0-10m, the product is cut off as required, and then manually packed away.
https://www.superdamc.com
- Country: China (Mainland)
- Business Type: Fire hose reel cabinet roll forming machine, Distribution box roll forming machine, filter frame roll forming machine, oval tube forming machine, square tube roll forming machine, triangular tube machine, electronic cabinet roll forming machine
- Market:Asia,European Union
- Founded Year:2009
- Address:No.95, Ainan Rd, Longdong district, Longgang area
- Contact:Demi Wu
