96 Channel Discrete Input Function Board
Product Quick Detail
- FOB Price
- USD $285.00 / Piece
- Place Of Origin
- China(Mainland)
- Minimum Order
- 1
- Packaging
- wrapped in anti static bags in carton cases with foams inside
- Delivery
- 15 Days
Specifications
● Standard 3U module (front wiring)
● 96-channel discrete input
● Maximum input level range: ±60V
● Logic threshold: high level +18V~+36V, low level: －1V~+1V
● 96-channel discrete input
● Maximum input level range: ±60V
● Logic threshold: high level +18V~+36V, low level: －1V~+1V
Product Description

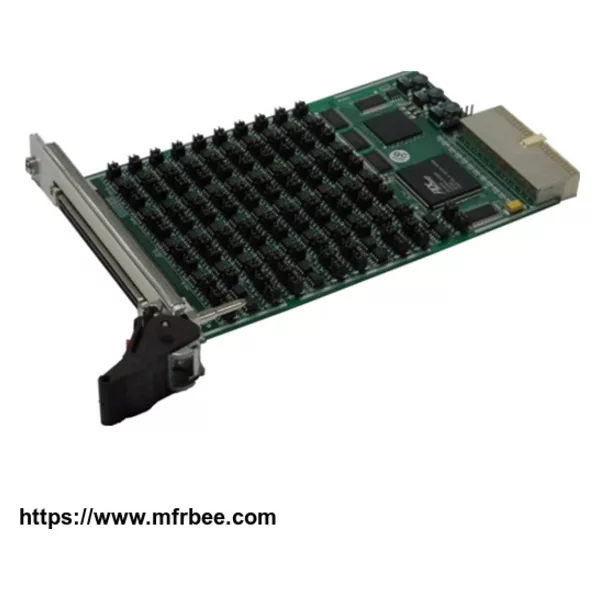

ZY44205 is a DIO function module based on PXI/CPCI bus, which supports 96-channel discrete input. Each channel can be individually set to power/off or power ground/off or power/power ground input detection by jumper choice.
General Specifications
External dimensions (L×W×H) ........... standard PXI/CPCI 3U card 160mm×100mm×4HP, tolerance< 0.2mm, with 3U puller
Connector ........... SCSI-100 plug-and-jack type connector
Working Environment
Temperature range ........... -40℃ ~ +85℃
Relative humidity ........... Work, 5~85%, no condensation
........... storage, 5~95%, no condensation
Typical Application
Construction of automatic test system
