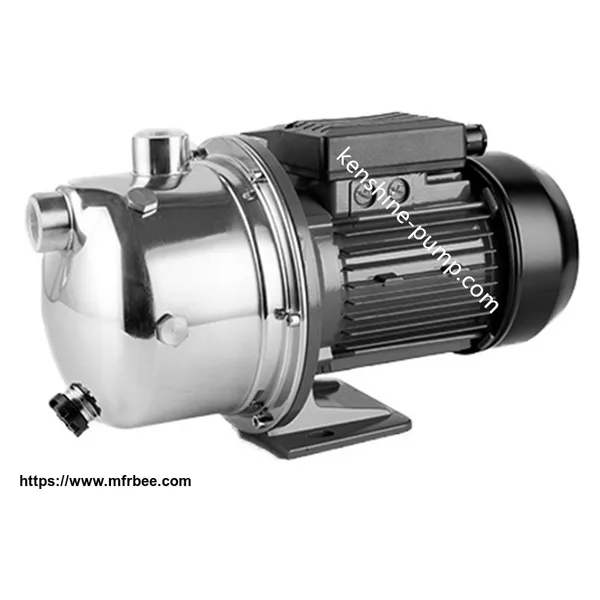

JETB Stainless steel self-priming jet pump
JETB stainless steel jet self-priming pump is a self-priming light-duty portable jet centrifugal pump, and its flow components are made of stainless steel and high-strength composite plastic. JETB stainless steel self-priming jet centrifugal pump has the features of small volume, light weight, beautiful appearance, smooth runner, high efficiency, smooth operation and easy installation.
JETB stainless steel self-priming jet centrifugal pump:
1.JETB self-priming jet centrifugal pump has high water pressure and good self-priming performance (suction height up 9meters)
2. Pump body of JETB stainless steel self-priming pump and oil seal seat are made of stainless steel. Jet device of JETB stainless steel self-priming jet centrifugal pump is made of high-strength wear-resistant plastic for conveying different water. (Noryl material).
3. JETB Stainless steel injection self - priming pump has a long service life. The pump has its own threaded joint to make the quick and convenient installation.
4.JETB stainless steel jet self-priming centrifugal pump is driven by the air-cooled motor, single-phase built-in overheat overload protection device, safe and reliable operation.
5. JETB stainless steel self-priming jet centrifugal pump has Compact structure, few moving parts. The pump is durable and easy to maintain and repair.
JET stainless steel self-priming pump application:
Stainless steel jet self-priming pump is suitable for conveying thin, clean water or other weak acid, non-crystalline liquids similar to water. The liquids without solid particles or fiber etc. impurity. JETB stainless steel jet self-priming centrifugal pump is widely used in impoundment, domestic water supply, water delivery, pressurization etc.
model | Flow | Head | motor power | Voltage | Speed | Caliber | Material |
m³/h | m | kw | v | RPM | mm | ||
JETB0.37 | 1.5 | 16 | 0.37 | 220 | 3000 | 25 | 304 |
JETB0.55 | 2 | 20 | 0.55 | 220 | 3000 | 25 | 304 |
JETB0.75 | 2 | 25 | 0.75 | 220/380 | 3000 | 25 | 304 |
JETB1.1 | 3 | 25 | 1.1 | 220/380 | 3000 | 25 | 304 |
