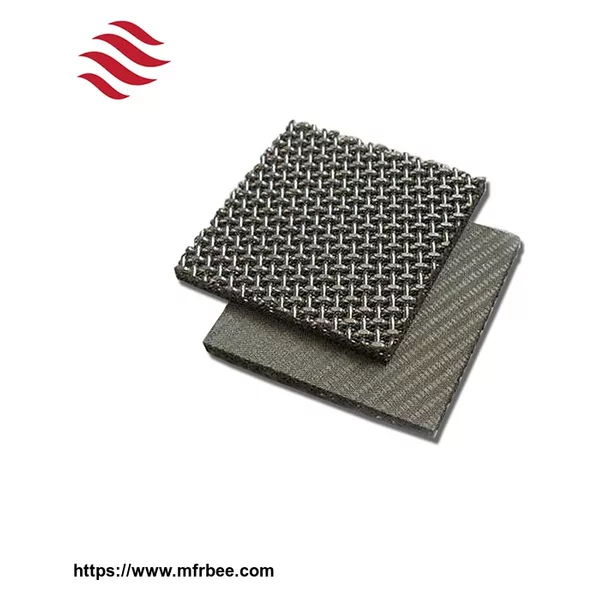

Standard 6-Layer Sintered Mesh

Minimum Order
1
Packaging
wooden box
Delivery
15 Days
6-layer sintered mesh is widely used for filtration, washing and drying, 3 in 1 medical filter plate as well as drug filtration industries. It is based on the 5-layer mesh by adding one layer 3.5mm thickness 12 mesh size, better pressure resistance, which can be processed into split type and integral type.
Normally our standard mesh has 5 layers, that is protection layer, filter layer, separation layer, support layer. It can not only maintain stable and even filtration rate but also ensure high strength and hardness. An ideal filter medium is a kind of material with high anti-pressure resistance and uniform filtration size.
Since the filtration mechanism is for surface filtration with smooth mesh hole, it has unique repeated washing and reuse features. It can be washed repeatedly for long term usage, especially suitable for continuous and automatic operation process, which can not be compared for any other materials.
This type of mesh is easy to be shaped, processed and welded. It can be processed into various shapes such as round, circular, tube, cone and wave, etc.
Technical data
Filtration rate 1-100μm, other can be customized.
Thickness 3.0-3.5mm
Material 316L/304
Regeneration Regeneration and washable
Temperature -200℃-600℃;
Acid-alkali resistance Acid-alkali resistance, include strong acid and alkali, but not for material with HCI or CL
Standard Size 500*1000、600*1000、6000*1200、1000*1200(other sizes can be customized)
