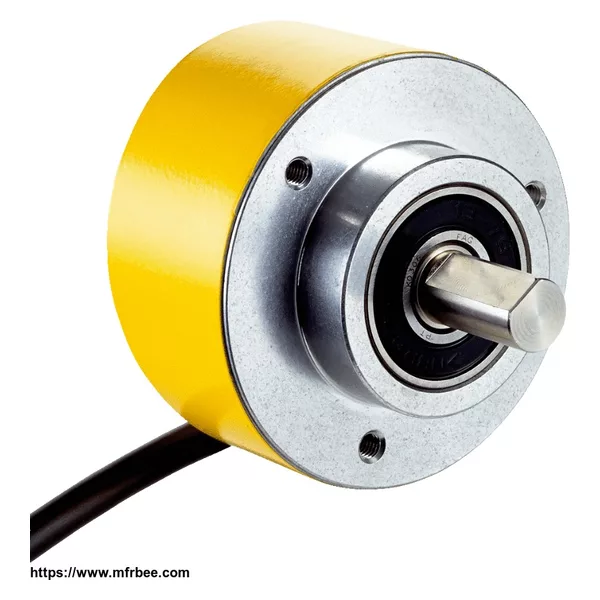

DFS60S-S4OJ01024

Mechanical design of solid shaft, end mounted flange

Diameter 10 mm

Wavelength 19mm

Shaft material stainless steel

Flange aluminum

The building material is aluminum die-casting

Weight approx. 0.3kg 1)

Starting torque ≤ 0.5ncm (at 20°C)

Operating torque ≤ 0.3ncm (at 20°C)

Allowable load on shaft

80 N (radial)

40 N (axial)

The maximum angular acceleration is + 500,000 rad /s

Running speed 9,000min 2)

The moment of inertia of the rotor is 8 square centimeters

Bearing life 3.6 x 10 ^ 9 turns 3)
